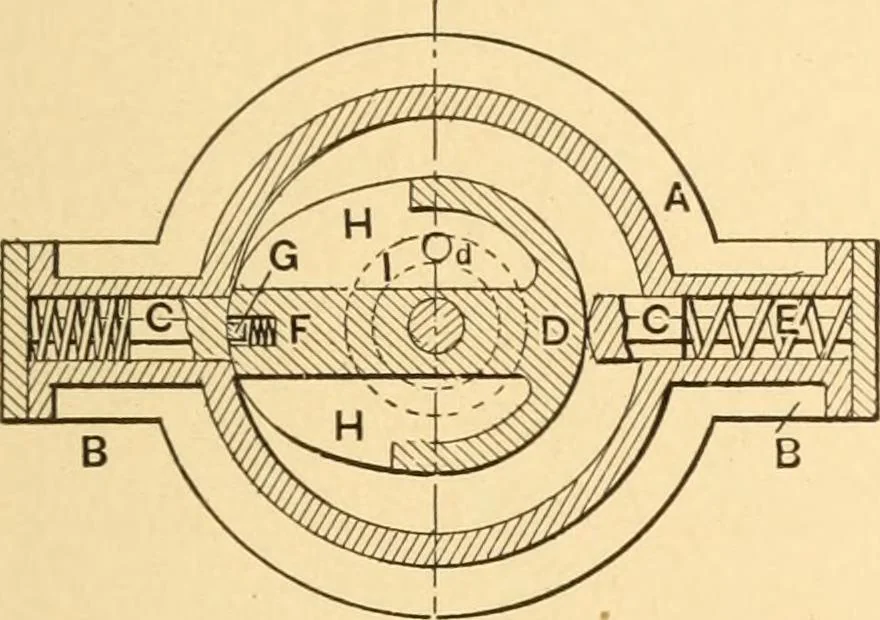

he cyhnder, and is cham-bered on opposite sides of its periph-ery, leaving a partition, F, which is provided with a spring packing, G,at its edge. The chambers, H H, are entirely separate from eachother when the piston is inserted in the casing. One chamber com-municates by means of an opening, d,… … 293- CENTRIFUGAL PUMP. German type. The revolving disk receives the water on eachside near the shaft in curvedchannels, and discharges throughopenings in the periphery of thedisk opposite to a continued slotin the casing. A corrugated clos-ure of the shell and disk near theshaft prevents back flow…
