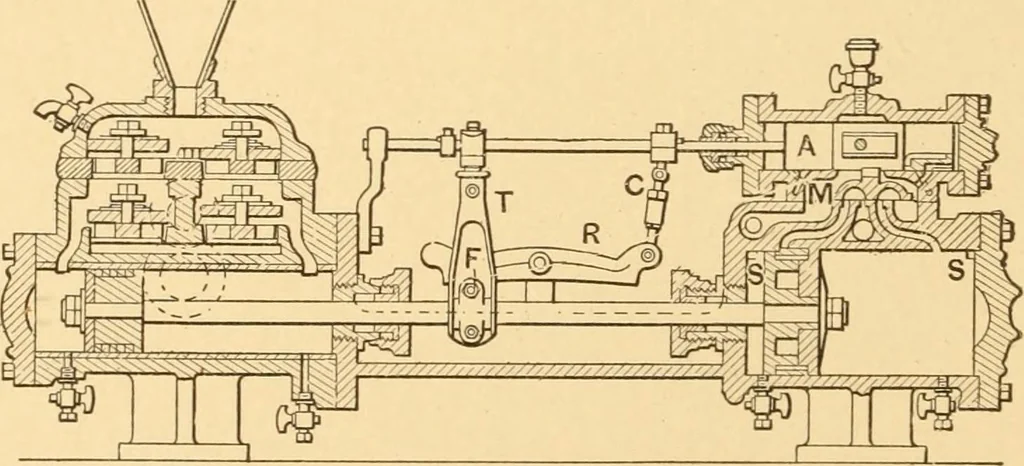

A rocker arm linked to the piston rod of each side of the pump oper-ates its opposite valve. 303. VALVE MOVEMENT. Single steam pump. Knowlestype. Freedom from a dead center is secured by the use of the … auxiliary piston A, which works in the steam chest and drives the mainslide valve M. This main valve is of the B form and moves on a flatseat; it has on top a stem which fits into a recess in the chest piston A.In addition to this it has on each end a small lip which alternatelycovers and uncovers…
