Experimental engineering and manual for testing. For engineers and for students in engineering laboratories (1906)
Carpenter, Rolla C. (Rolla Clinton), 1852-1919 · New York, J. Wiley & Sons; [etc., etc.] · leaf 721

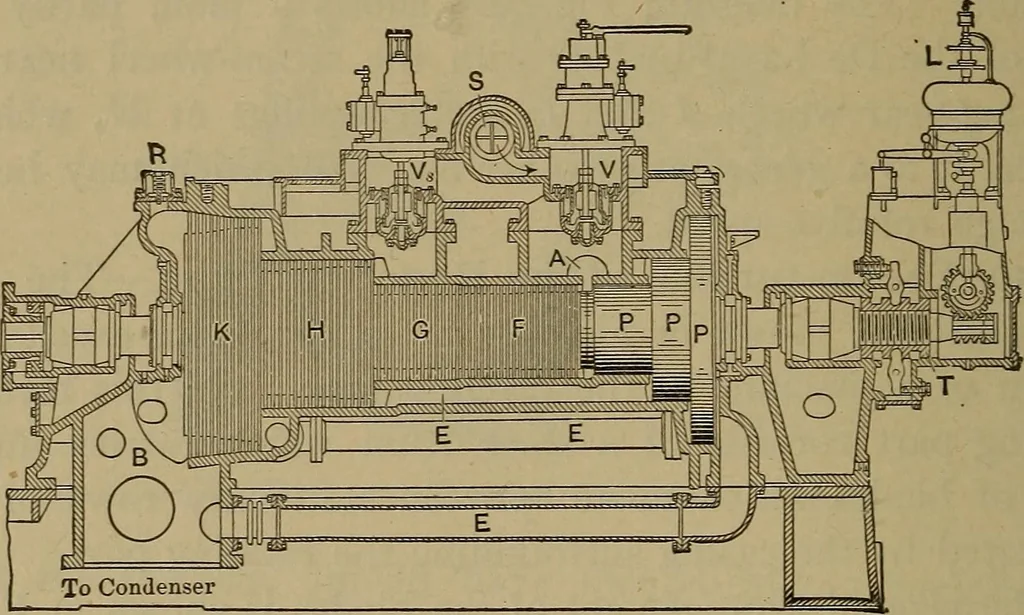

volume and produces great expansion. From therotating part it passes into the chamber, B, connected with thecondenser. 690 EXPERIMENTAL ENGINEERING. [§45L To take the lateral thrust off the bearings, pistons or rotatingcollars, P, are arranged so as to receive the steam pressure andbalance the… … Fig. 307.—Parsons Steam-turbine. electrical generator for which the power generated by the turbineis generally used. The Parsons steam-turbine is built by theWestinghouse Machine Co. and by the Allis-Chalmers Co. 451. Steam-turbine of Combined Reaction and ImpulseType.—The Curtis turbine as built…
