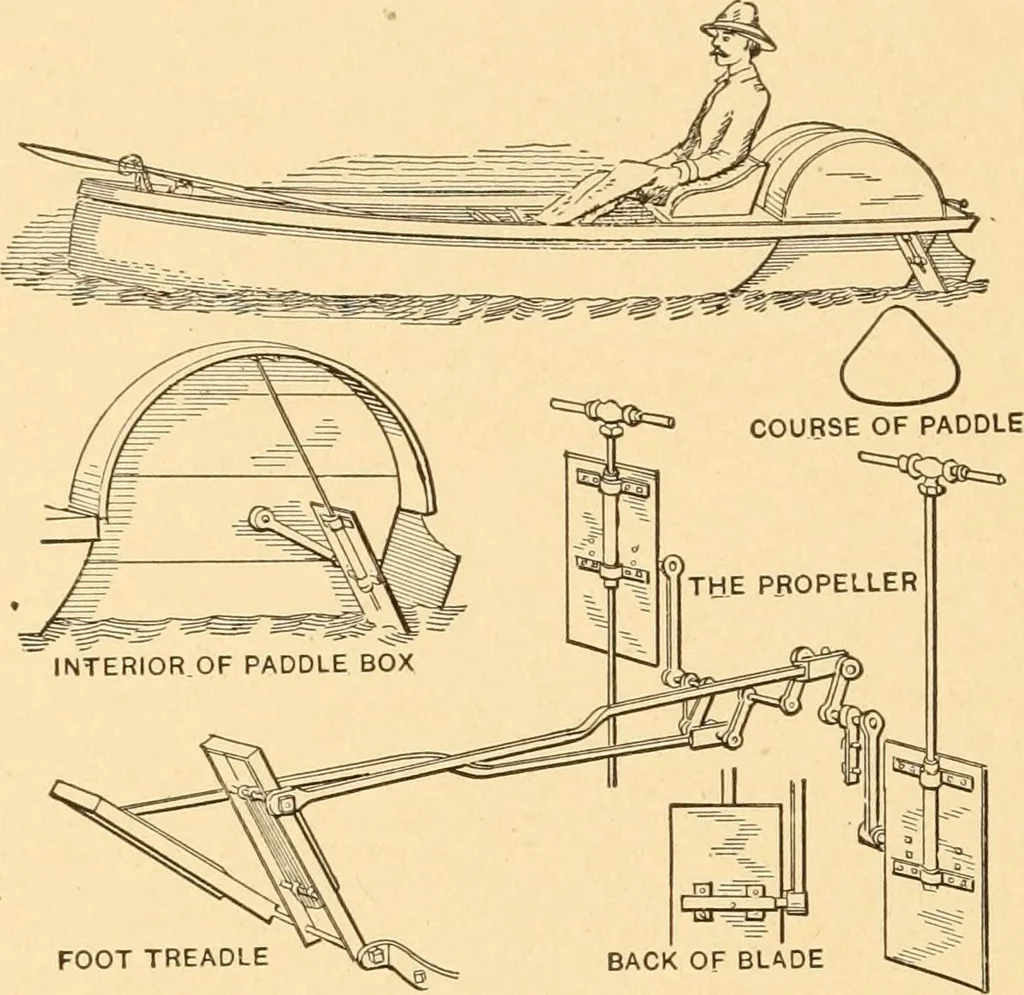

196 NAVIGATION, VESSELS, MARINE APPLIANCES, ETC. 489. FEATHERINGBLADE PROPELLER.A foot-power propellerwith paddle blades tohang over the sides at thestern, or may be placed inan extension at the stern,as shown in the cuts.The longest movement ofthe paddle is when it isimmersed, and the pad-dle… … FOOT TREADLE 490. The curve traversed by the edge of the paddle. 491. The extension of the paddle box. 492. Crank shaft and foot treadle connections. 493. Blade and crank connection. 494. TWENTY-FIVE-FOOT LAUNCH. Fast type with positivesubmerged wheel, 5 feet beam, light draught hull with wheel…
