Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries (1910)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The N. W. Henley publishing company · leaf 256

An illustration from Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries, 1910, leaf 256

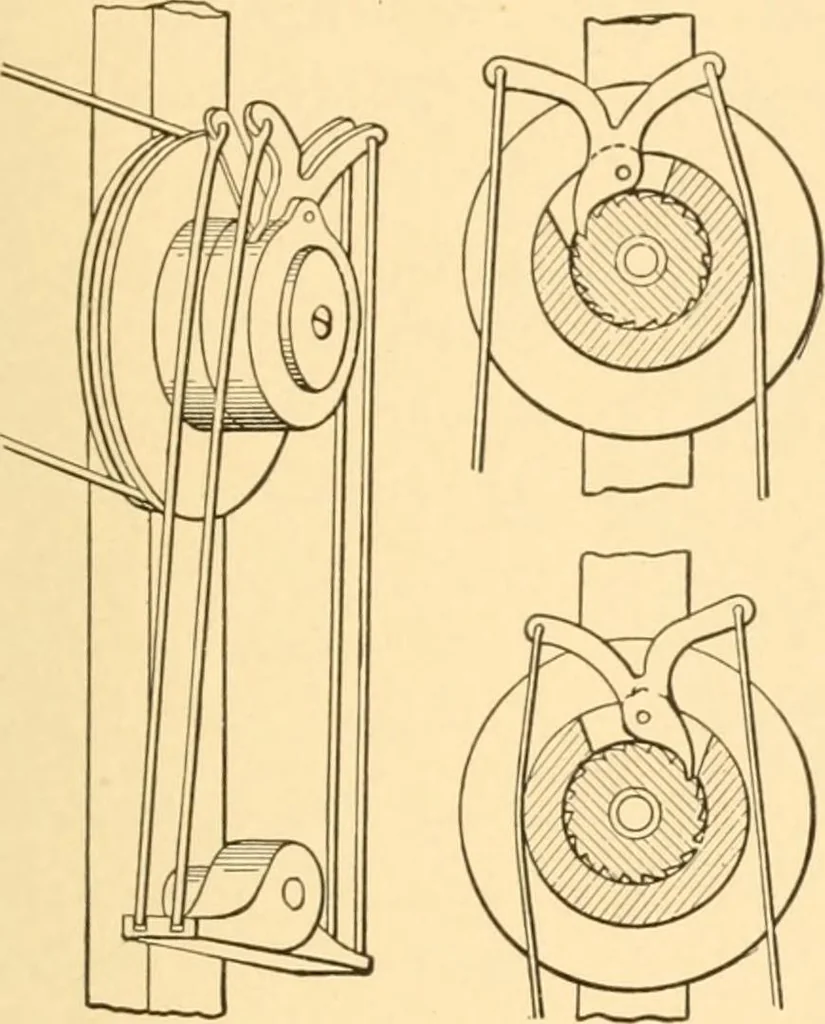

MOTION AND CONTROLLING DEVICES, ETC. 255 … 671. 672. 670. SWING MOTOR. A wheelhas a hub with two sets of ratchet teethstanding in opposite directions, asshown, collars fitting loosely on the hubover the ratchet teeth, and pawls ful-crumed on the collars to engage theteeth, while a lever mounted to swingon a stud is connected by belts to…
