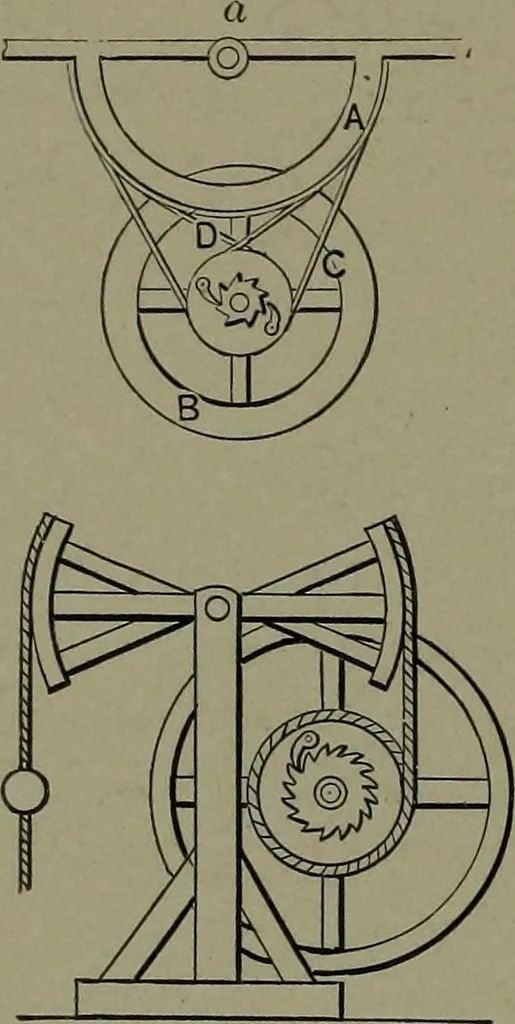

1007. INTERMITTENT CIRCULAR MOTIONfrom a reciprocating rod. Motion varied in the ratchetwheel A by the number of teeth swept over bv thepawl B. 1008. PAWL LIFT.—By moving the leverbetween the pins in the bell-crank pawl arm, thepawl is lifted and moved to new position with-out dragging over the… … 1009. OSCILLATING MOTION into rotarymotion by a straight and crossed band runningon two ratchet pulleys, the ratchets of which arefast on the shaft. Each oscillation of the sectorlever gives a forward motion to the shaft. loio. CONTINUOUS ROTARY MOTIONby stop ratchet and oscillating beam.…
