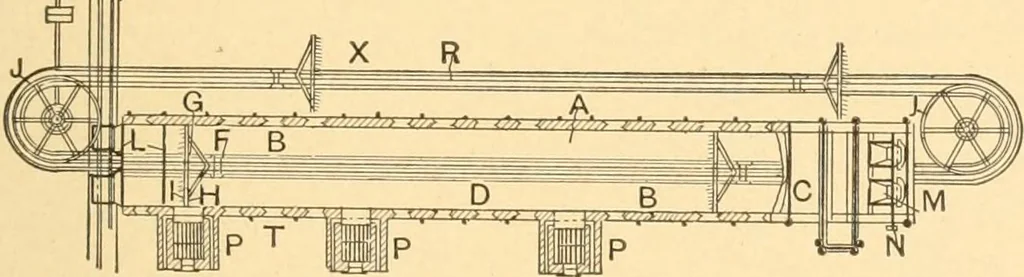

719. ORE ROASTING FUR-NACE. The ore fed from the hopperat the top is drawn alternately inwardand outward on the partition hearthsof the roaster by revolving arms withblades inclined to draw each way onalternate floors. The hot gases enterfrom the flue at the top and are dis-charged with the ore at… … Q R 720. ORE ROASTING FURNACE. Straight line type. Ropp.The ore enters from a spreading hopper at one end and is drawn by rabbles with inclined° teeth for alternate turning over of the oreduring its passagealong the furnace bedto the discharge pit.The rabbles are at-tached to a chain carrier and…
