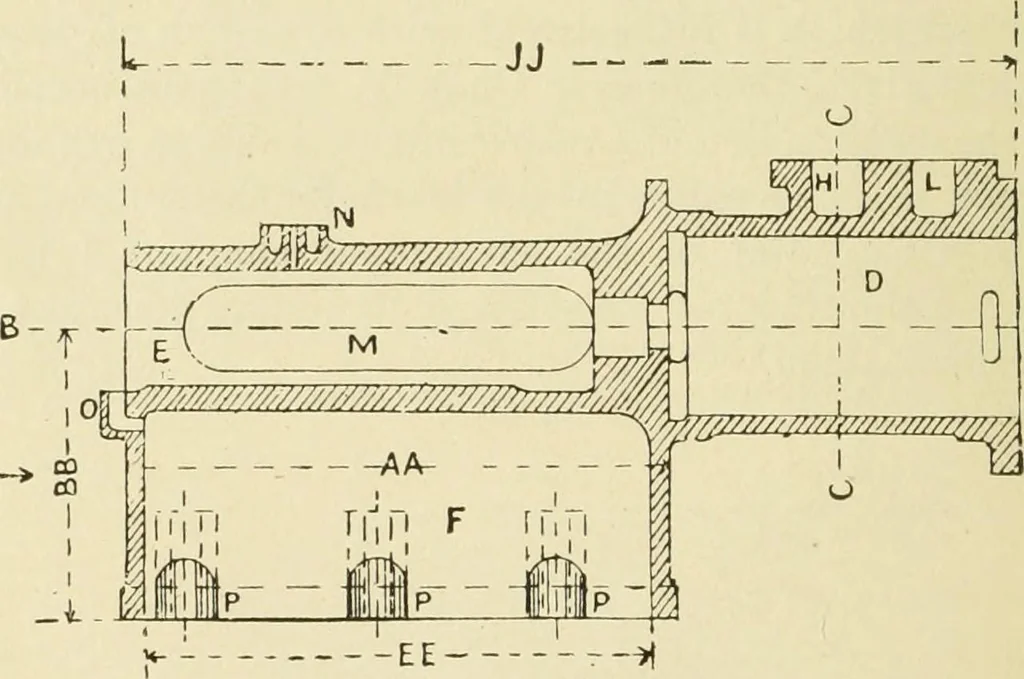

V., a very full accountof the construction of a rather intricate engine cylinder,which will be a capital object lesson for the student andapprentice. But in the subsequent chapters I havetreated the illustrations selected in a more general andbriefer fashion. CHAPTER V. AN ENGINE CYLINDER. The… … ■EE t-H Fig. 37. Cylinder—Sectional Elevation. the casting. This is shown in Figs 37-40. Fig. 37 isa sectional elevation taken through the plane A-A inFig. 38. Fig. 38 is a sectional plan taken along the AN ENGINE CYLINDER. 53 line B-B in Fig. 37. Fig. 39 is a cross section takenthrough the lines…
