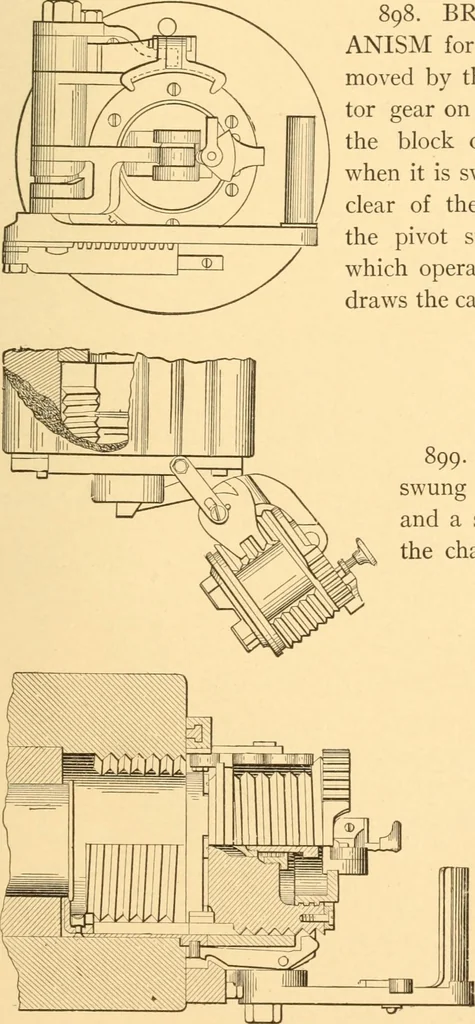

ire, and the bolt handle pushed forward and turned down. This mo-tion seats the cartridge in the chamber and cocks the piece, which is thenready to fire. 898. BREECH-BLOCK MECH-ANISM for firing large guns. A rackmoved by the lever meshing in a sec-tor gear on the breech block revolvesthe block one… … 899. Shows the breech blockswung clear from the chamberand a section of the screw withinthe chamber. 900. The breech blockin front of the chamberready to be pushed inand revolved to a lockposition by a furthermovement of the leverhandle. 352 MISCELLANEOUS DEVICES.
