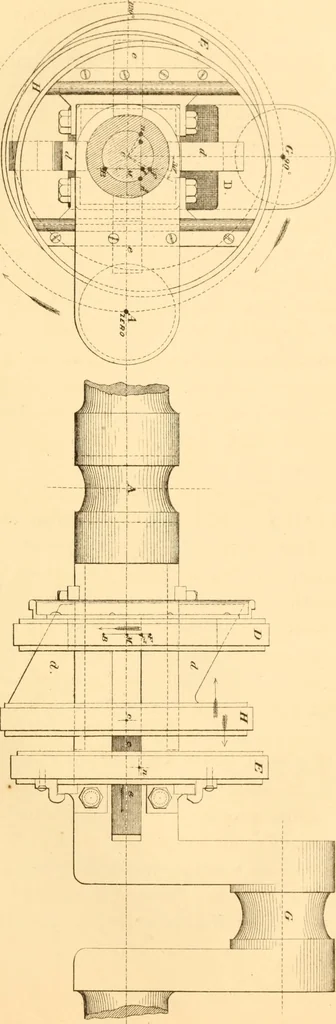

to the crank G, and consequently moves in a linen n2 at right angles to F B. If now the pulley II be slidalong the crank shaft until brought in contact with theeccentric D, the centre/2 will be transferred from/2 toB, and in like manner n] to n2, locations appropriate to aback or negative motion of… … ADJUSTABLE ECCENTIIICS. 85 D and E tlie earlier will tlie cut-off take place, as alreadyshown in Fig. 17. A moments reflection will satisfy the mind, that theDodd Wedge Motion cannot be corrected for inequalitiesof cut-off and exhaust closure due to angularity of theconnecting rod, without…
