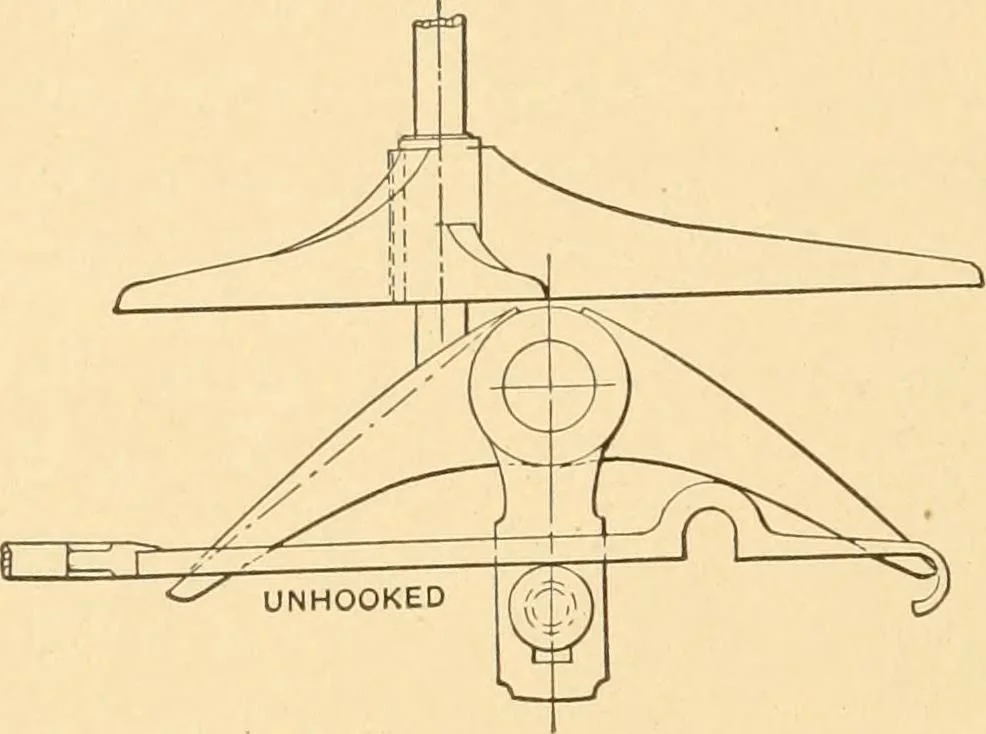

283. Plan showing spring shaft, bearings, lubricating channels and 88 STEAM POWER APPLIANCES. Steam ducts. Runs by the impact of steam from five nozzles against theouter edge of the buckets of the wheel. The long shaft is to take upthe unbalanced vibration of the disk. … 184. THE STEVENSVALVE GEAR. Showingthe double toe and wipers withthe eccentric rod unhooked.Type used on the Hudson Riversteamers. First used in 1840.A standard type for marine walk-ing-beam engines.
