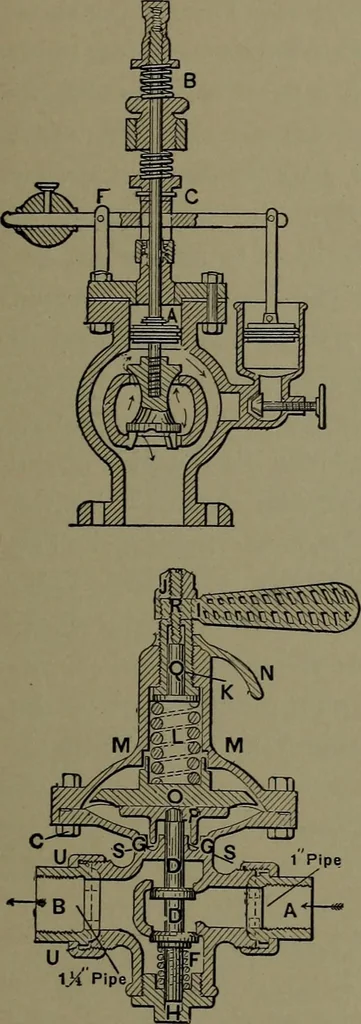

STEAM POWER APPLIANCES. 99 … 229. DIFFERENTIAL PRESSUREREGULATOR. A supplementary pistonand counterweighted lever pivoted at F,gives a close adjustment of differential pres-sures. The steam piston at A is connectedwith the high pressure side and is balancedby the spring at B, while the supplementarylever is attached to the…
