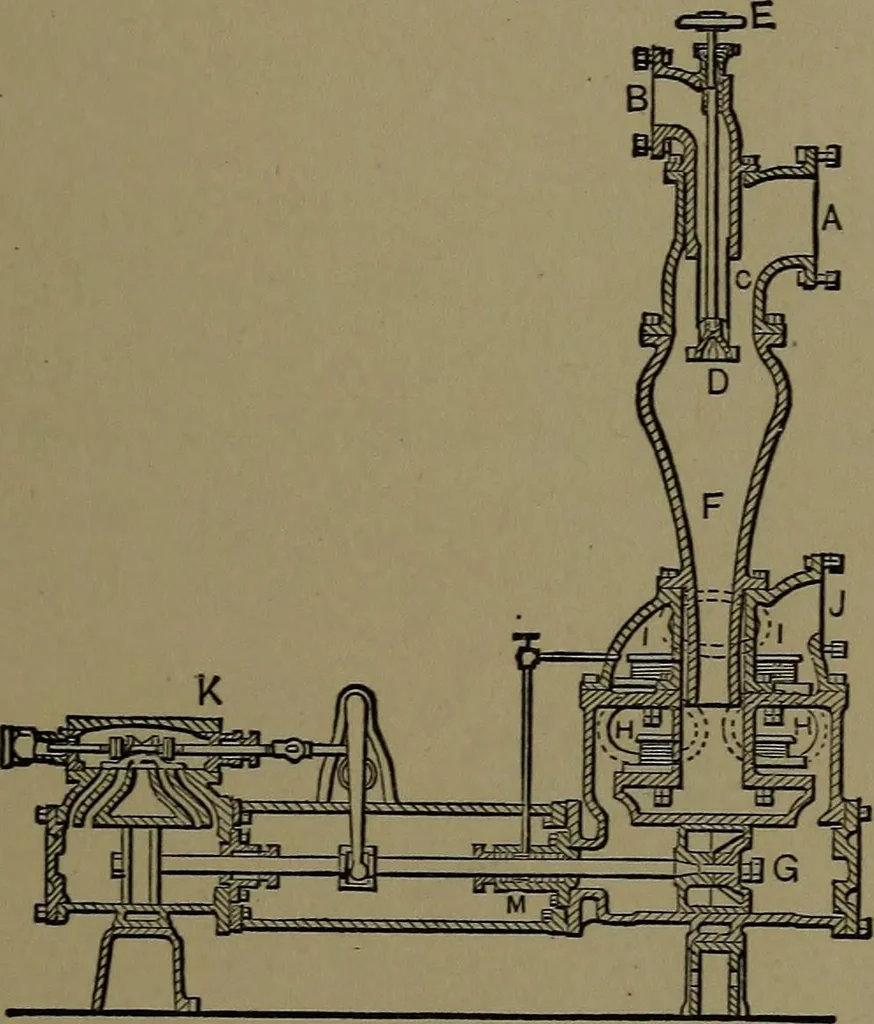

395. MISCHS VALVETAPPET, for a steam pump.A three-armed lever rockedby a roller travelling with thepiston rod. … 396. INDEPENDENT JETCONDENSER PUMP. A, exhaust inlet from engine. B, water inlet C, water nozzle. D, spray- valve regulated byscrew spindle and wheel K F, spray chamber. J, water discharge from pump.
