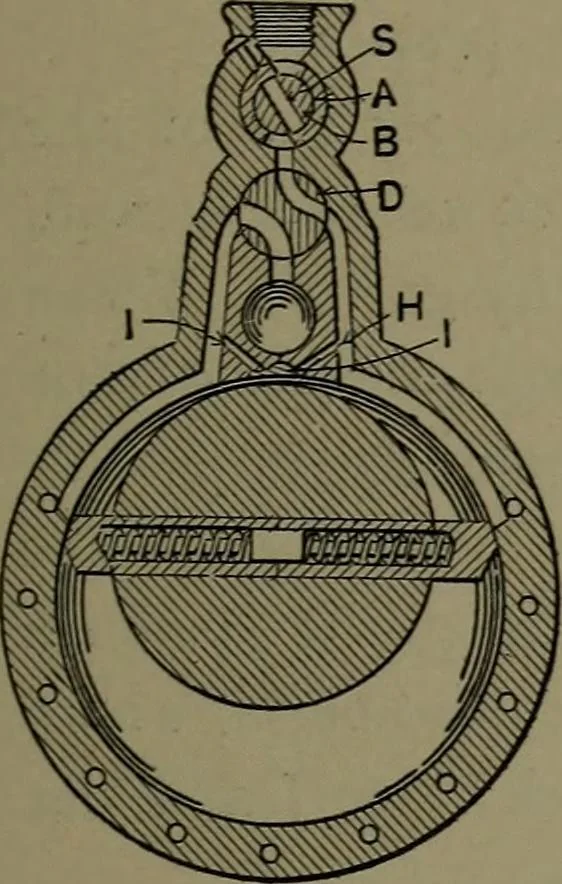

STEAM IOWKR APPLIANCES. 109 through the ports, ?, at either end of the cyhnders, the difference inthe diameters of the elHptical gears at the point of contact causes themain shaft elhptical gear, with the attached parts, to rotate. … 261. ROTARY ENGINE. Casadays pat-ent. A reversing rotary with adjustable cut off.A is the cut-off plug within an adjustable rotablecylinder and operated by an arm and connectingrod to the eccentric or the plug rotated bysprocket and chain. D, reversing plug. H, abut-ment block, cushioned by steam…
