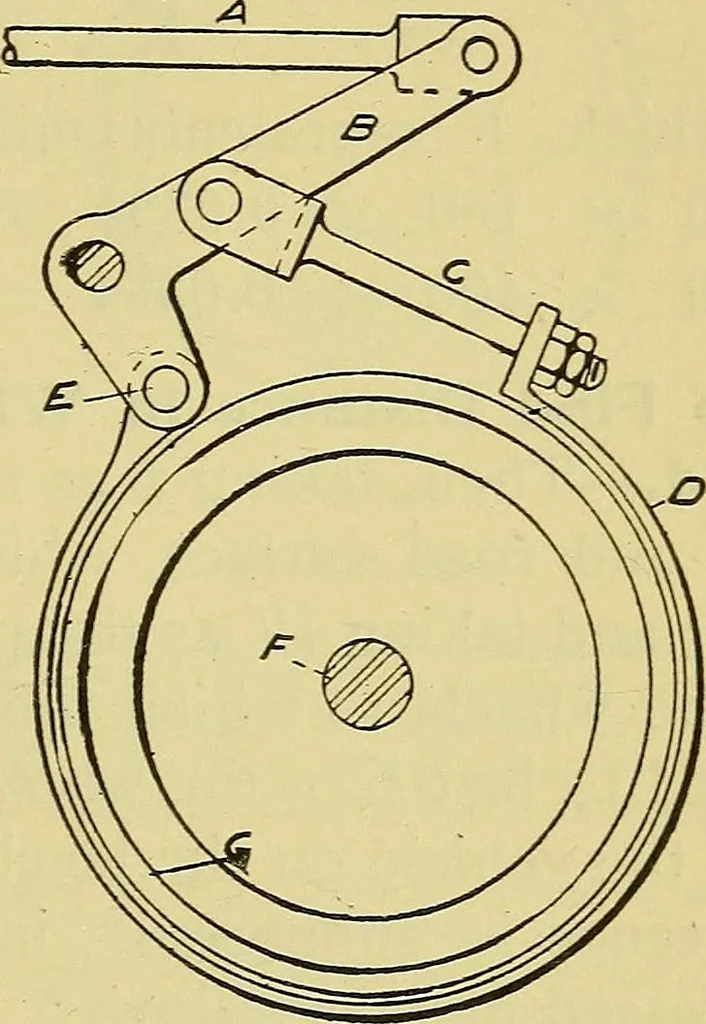

Fig. 122. Fig. 123. Figs. 122 and 123.— Two Forms of Constricting Band Brake. In the first figure, the drum,E, rotates on the spindle, D. Two shoes, F and G, joined to the link, L, pivoted at J,are pressed against the periphery of the drum, E, when the link, K, moves the lever,H, pivoted at C, so…
