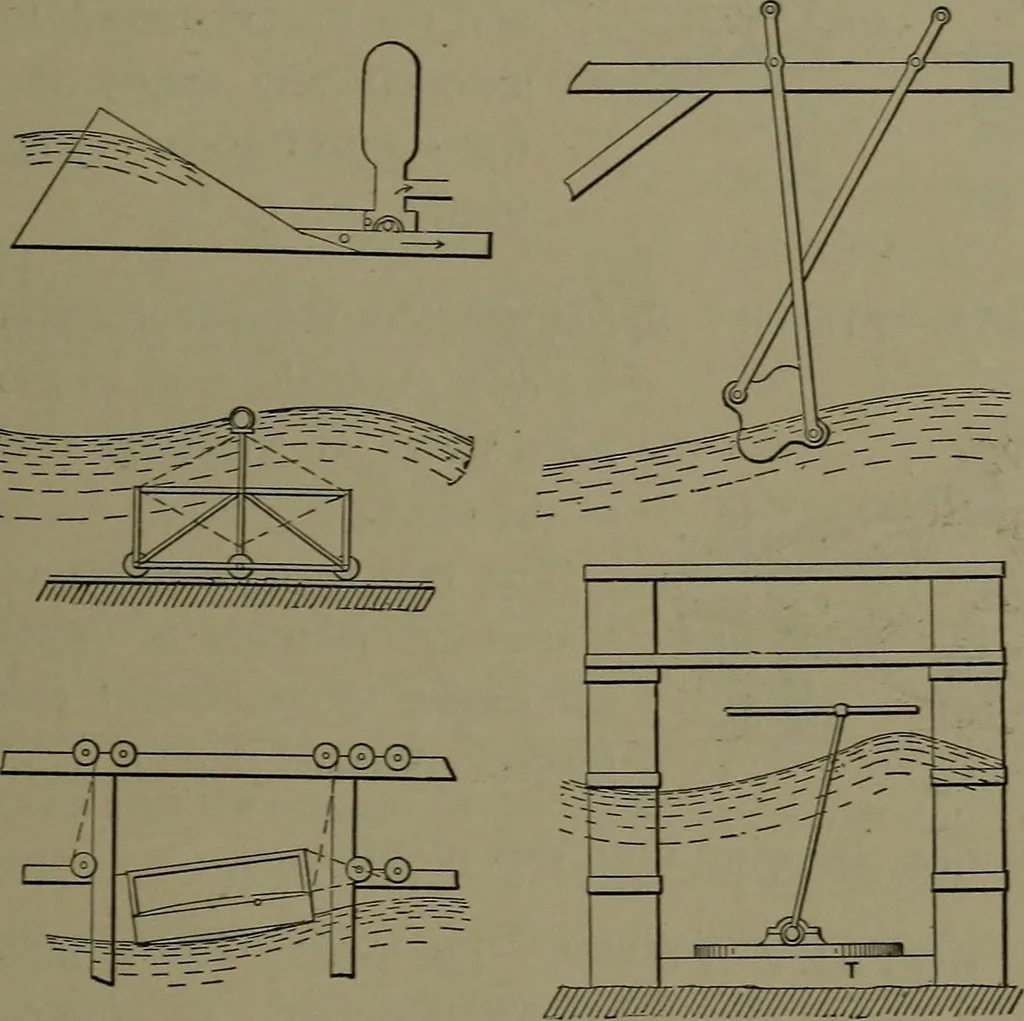

the other end. When compressed air is turned into the cylinder,the piston unwinds the cable from the drum, the toothed wheelcatches a pawl on the disk, and the engine shaft is revolved; the springthen returns the cable to its former position. The spiral shape ofthe drum gives the accelerated speed… … 282. WAVE MO-TORS. Waves oper-ating a hydraulic ram. 283. Waves oper-ating swinging levers. 284. Waves push-ing a vertical surface. 285. Waves liftinga float. 286. Waves swing-ing a hinged bladeanchored on the bot-tom.
