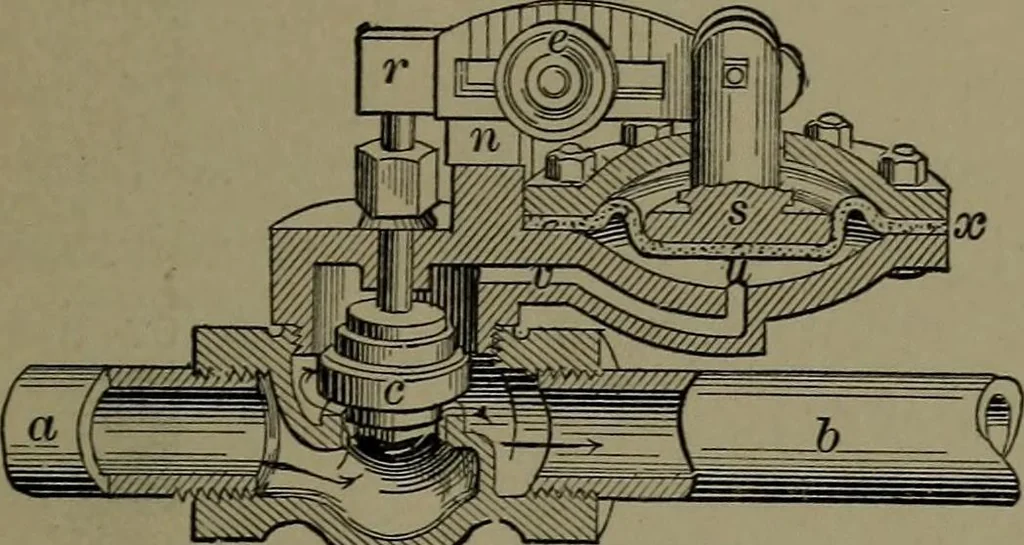

er day. Water is fed tothe inverted siphon at D, and is sealedagainst the low steam pressure by the dropof the bend at B. Still should not be overhalf full for best effect. HYDRAULIC TOWER AND APPLIANCES. 131 312. WATER-PRESSURE REGULATOR. Used in high-pressure service pipes. The diaphragm x and… … ^--^-^^^ «f==^. W^ lJ 313. VENTURI TUBE AND MEASURINGMETER. The differential velocity of the water in themain pipe and in the throat of the double conical tubeproduces a differential pressure in the small tubes withtheir mouths turned in opposite directions, which is usedfor registering the amount…
