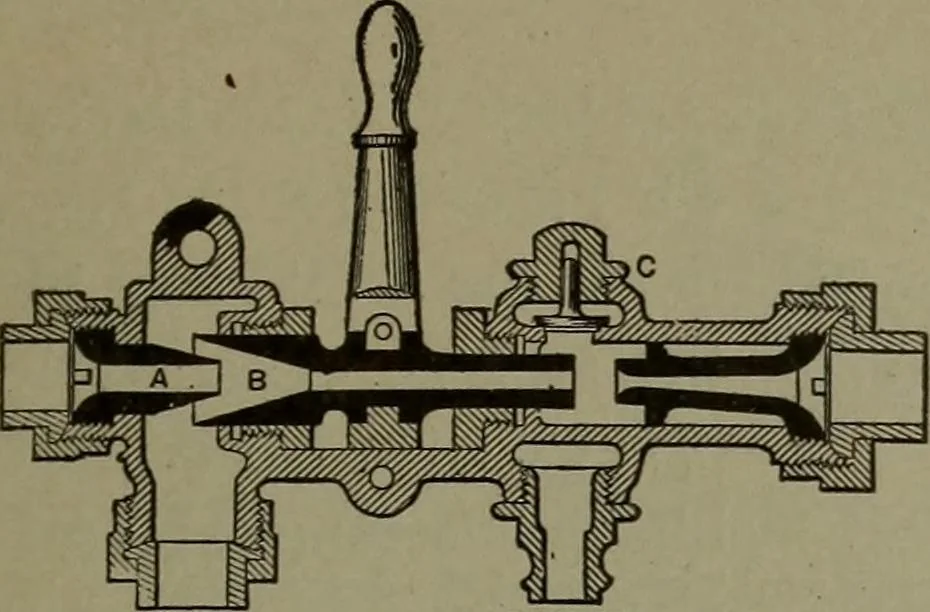

, a ; W, water-regulatingvalve ; D, stop check to over-flow ; C, automatic check; W,water valve. EBERMAN INJECTOR.— The combining tube slidesfor regulating thelift and over-flow. A single gravity checkvalve, D, closes the overflowwhen the current to the boileris established. 378. NATHAN INJECTOR.—A… … 379. LITTLE GIANTINJECTOR.—This modelhas two fixed tubes. Thecentral or combining tube ismovable for adjustment. Asingle automatic check valveregulates the overflow. CHECK VALV£-
