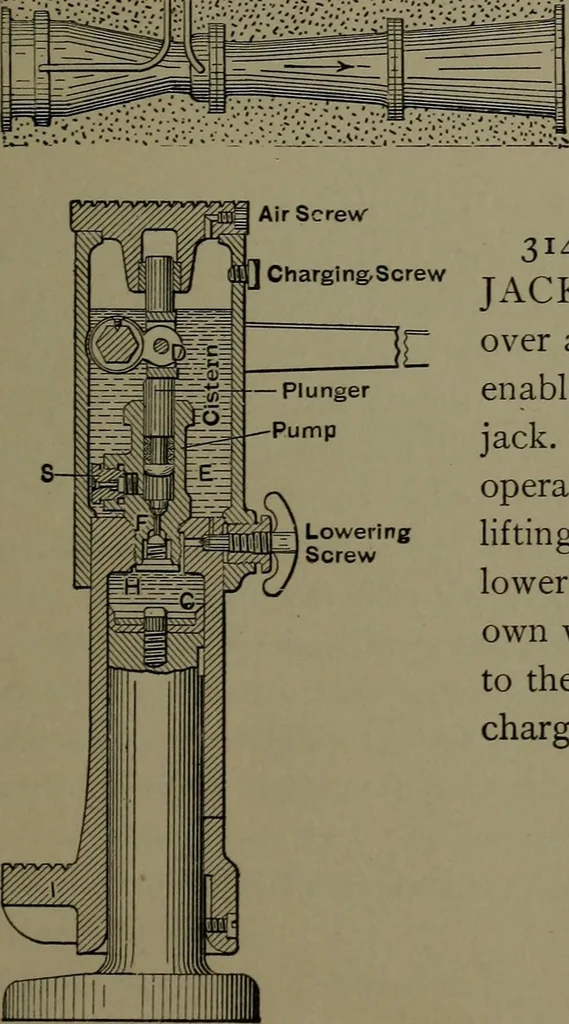

^--^-^^^ «f==^. W^ lJ 313. VENTURI TUBE AND MEASURINGMETER. The differential velocity of the water in themain pipe and in the throat of the double conical tubeproduces a differential pressure in the small tubes withtheir mouths turned in opposite directions, which is usedfor registering the amount… … 314. HYDRAULIC LIFTINGJACK. The shell of the jack extendsover and nearly to the foot of the ram toenable a lift at both head and foot of thejack. The small plunger and valves areoperated by the lever and arm D, forHfting, and the by-pass valve serves forlowering a load or closing the jack by itsown…
