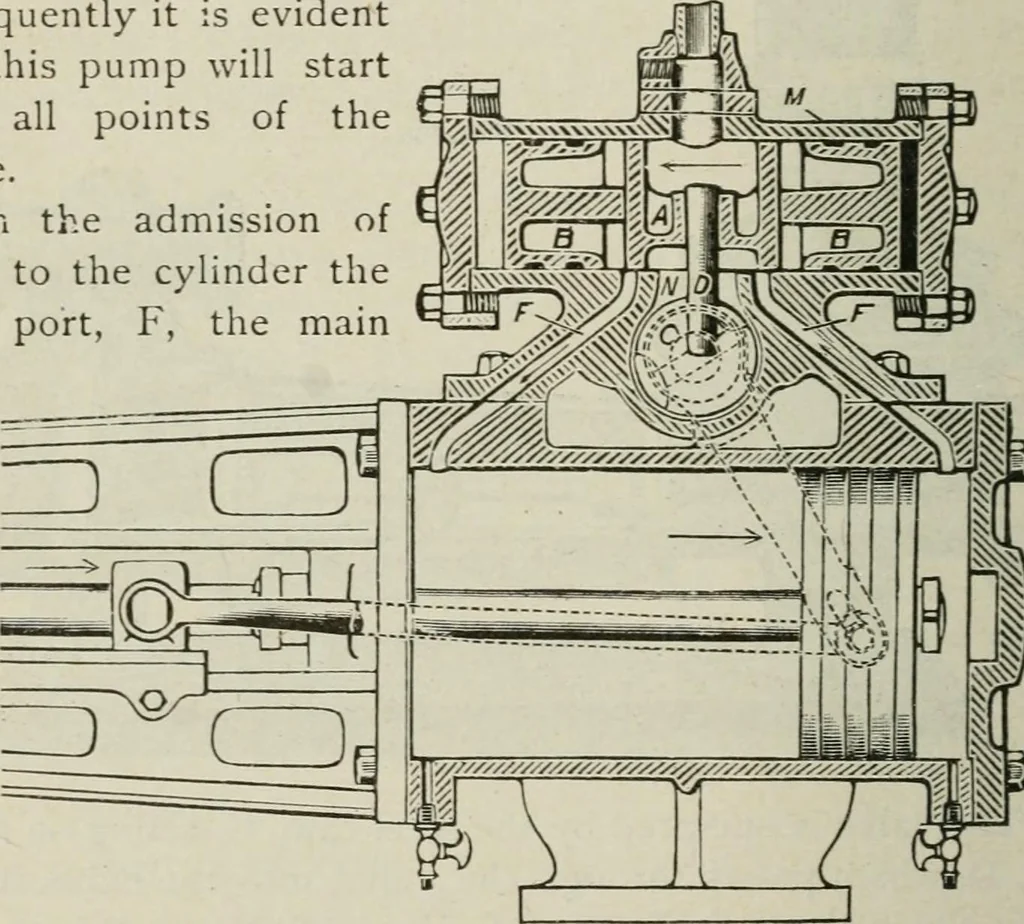

Fig. 249. … Fig. 2oU. piston, cam and valve will move in the direction indicatedby the arrows. The first movement of the cam oscillatesthe valve, preparatory to bringing it into a proper positionfor the opening of the auxiliary steam ports, E, to live The Steam Pump. 280 steam, and E, to exhaust also to close…
