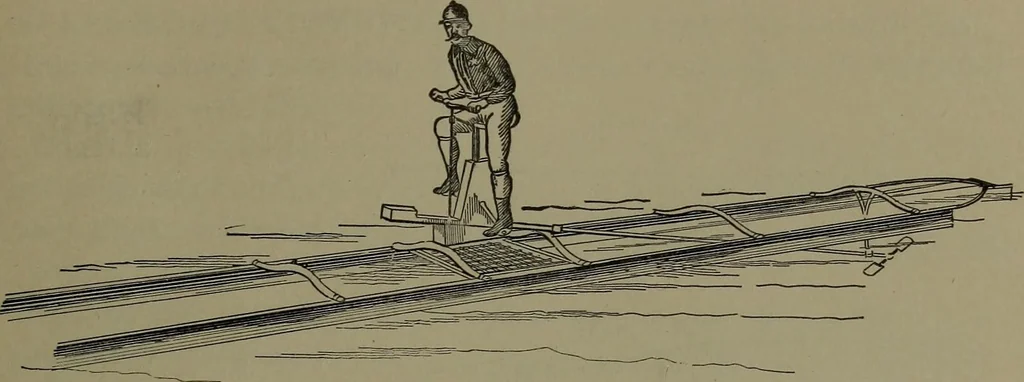

26 inches. Wheel 20 inches diameter, 30 inch pitch, with or withoutsteel wheel guard. Motor, 12 horse power. Displacement with pas-sengers, 2,000 lbs. Elevation and midship sections. 495. Sectional elevation of frame, motor and propeller. 496. Plan with lines of upper works. NAVIGATION, VESSELS,… … 497. BICYCLE CATAMARAN. The pedal shaft carries a largeworm gear meshed to a small worm gear on the propeller shaft—steeringis by the bicycle handle and cross arm below, with wire lanyards to therudder. 498. BICYCLE GEAR FOR A BOAT. The sprocket wheelshaft with a large bevel gear drives a vertical…
