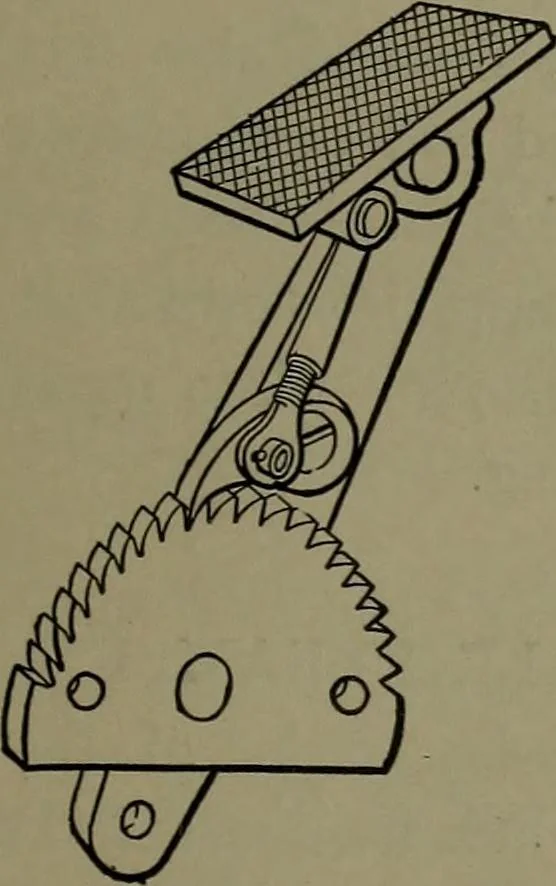

542. AUTOMOBILE STEERINGGEAR. A curved and eccentricallymounted cam plate on the handle shaftrevolves against roller arms of the hollowshaft K, moving it forward or back-ward in the socket and sheath D, E.The socket-head spindle, F, accommo-dates difference in length by sliding inthe sheath K. 543.… … 544. RATCHET BRAKE LEVER for auto-mobiles. Miller type. By a simple motion ofthe foot the pawl locks or unlocks the brakelever, so that the brake is on and locked whenleaving the automobile alone. Saves muchtrouble in tying up horseless vehicles. 545. AUTOMOBILE CHANGE SPEED GEAR. Petteler type.A,…
