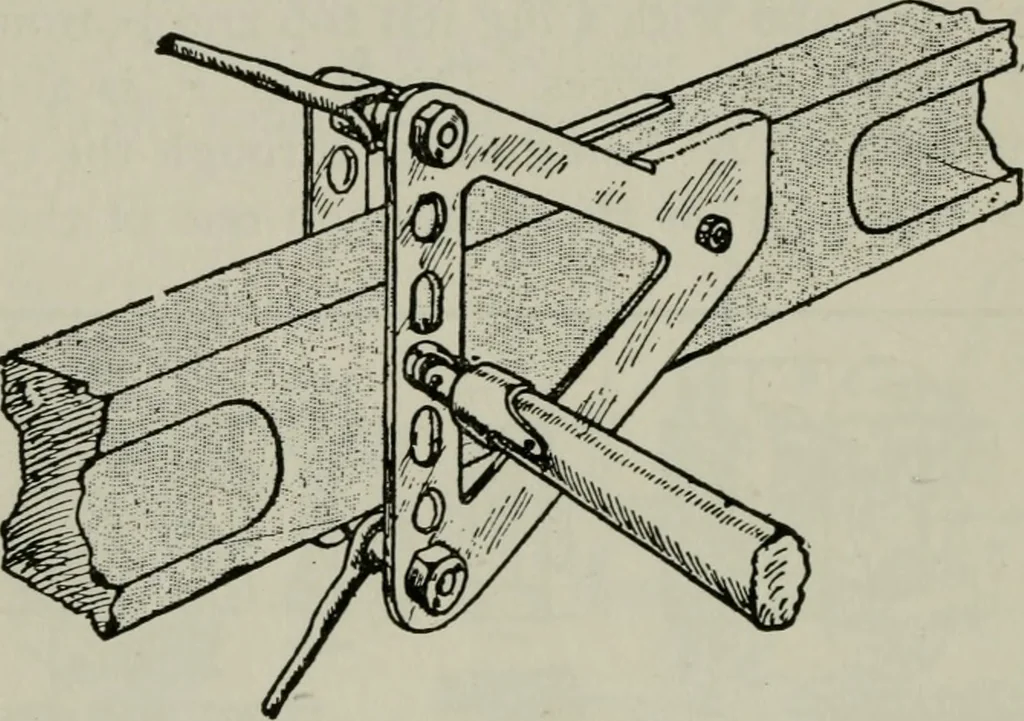

guys are attached. Thetop flange (J), and the bottom flange (L), are ash, whilethe side plates and diagonals (H) are spruce. The di-agonals resist the shear, and are held in place by the tie 226 WING DETAILS bolts (I). At the left, the spruce cover plate is removed,while at the right it is in place… … Fig. 14. Plate Connection for Monoplane Stay Wire Connection to Spar.A Compression Member or Drag Strut Is Sliown in the. Centerof the Spar Which Takes Up the Thrust Due to the Angularity ofthe Stays and Also the Drag Stress. edge. The most important factors in the choice of loca-tion are: (1)…
