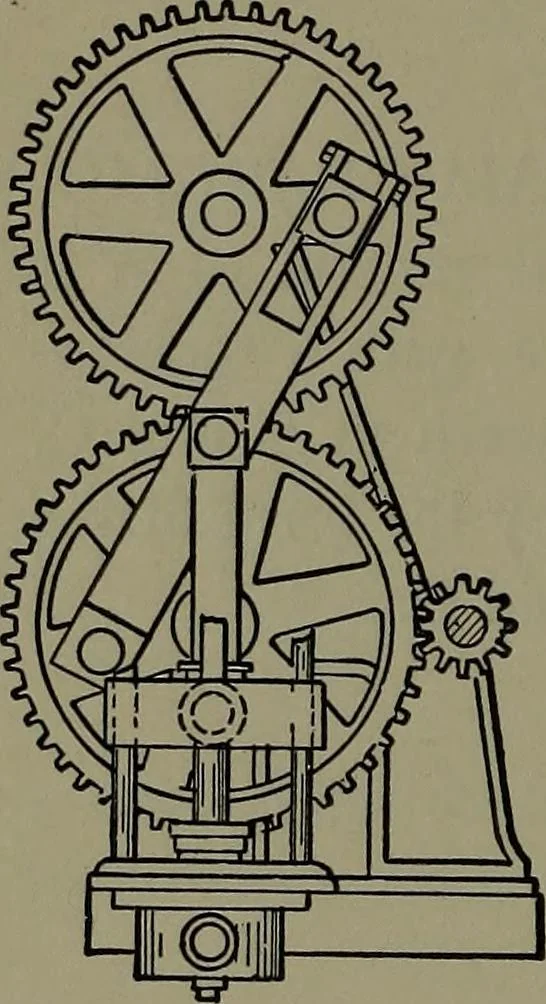

236 GEARING AND GEAR MOTION, ETC. … 611. CRANK SUBSTITUTE. The gearwheels pinioned to the link, to the center of whichthe pump rod is pinioned, give a parallel motionto the pump, thus avoiding the lateral thrust of acrank. 612. SUN AND PLANET MOTION by sprocket wheels and chain. The central sprocket on the pul-ley shaft is fixed. The…
