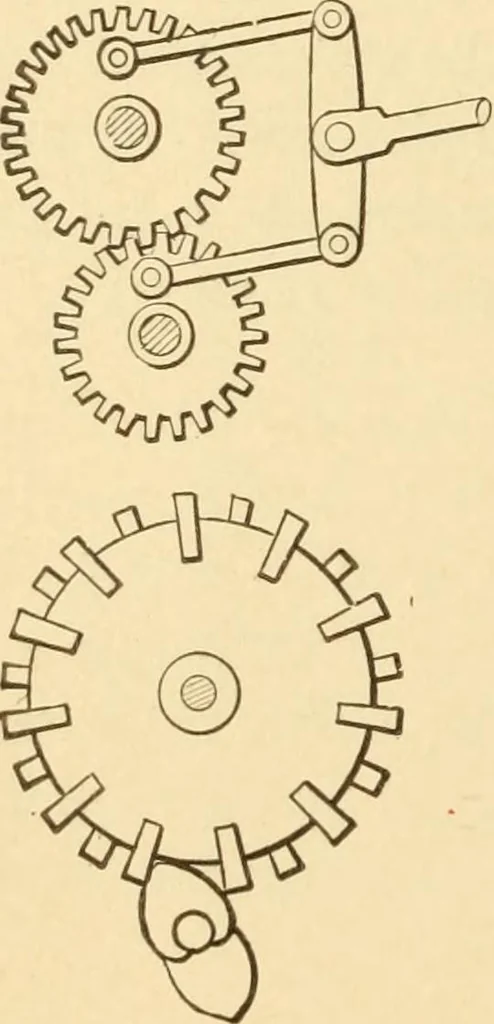

923. COMPLEX ALTERNATING RECIP-ROCAL MOTION from three unequal gears andtwo walking-beams giving an endless variety ofmotions to the terminal connecting rod … 924. ALTERNATING RECIPROCAL MO-TION from two crank gears and connecting rodsto a walking-beam. When the gears are equalthe motion of the rod is uniform; when the gearsare unequal the motion of the rod is proportionallya varying differential one. 925. TWO-TOOTHED PINION.—Transmis-sion of motion to a…
