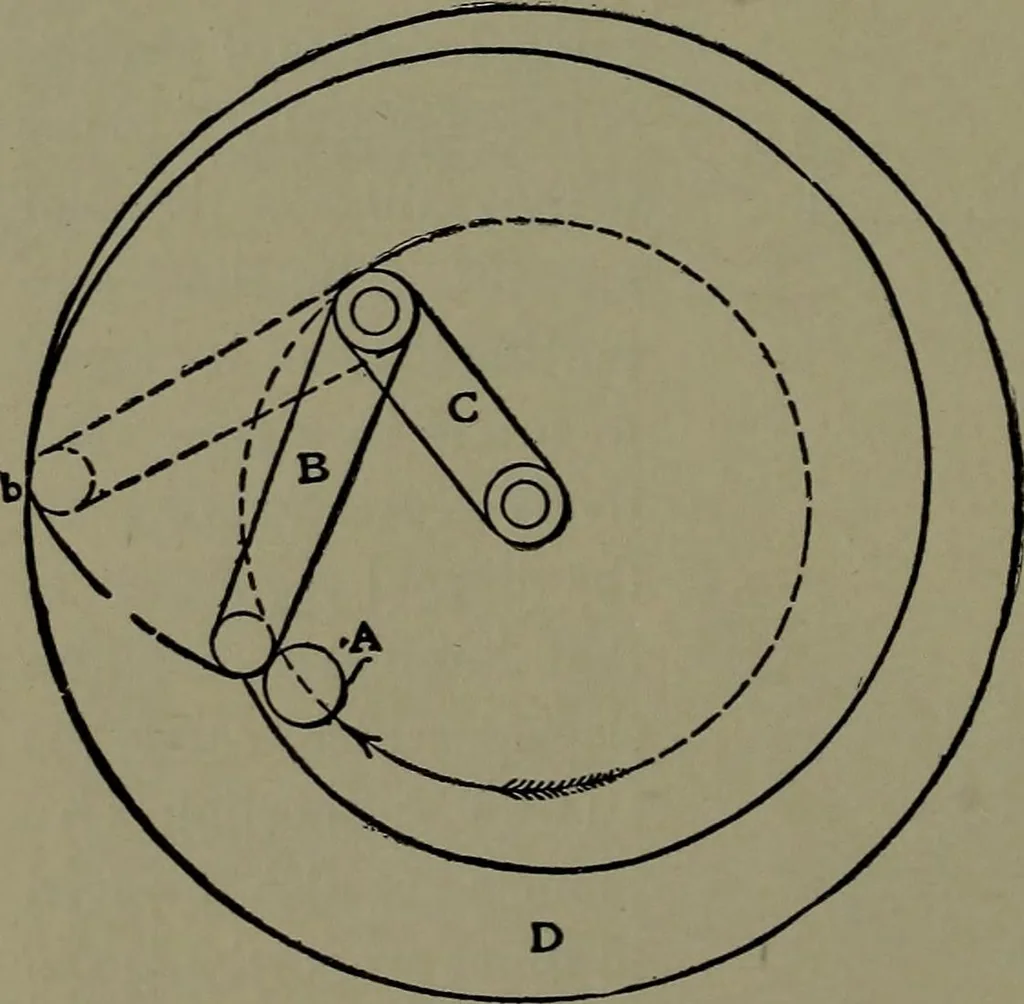

690A. LOST MOTIONCONNECTION. The pin A moves as shown by thearrow, pushing lever B aheadof it. One end of this leveris pivoted to C and theother end rests against thecam D. While B is movingfrom a to b, C stands still.The time thus lost is madeup during the rest of therevolution. Thus C…
