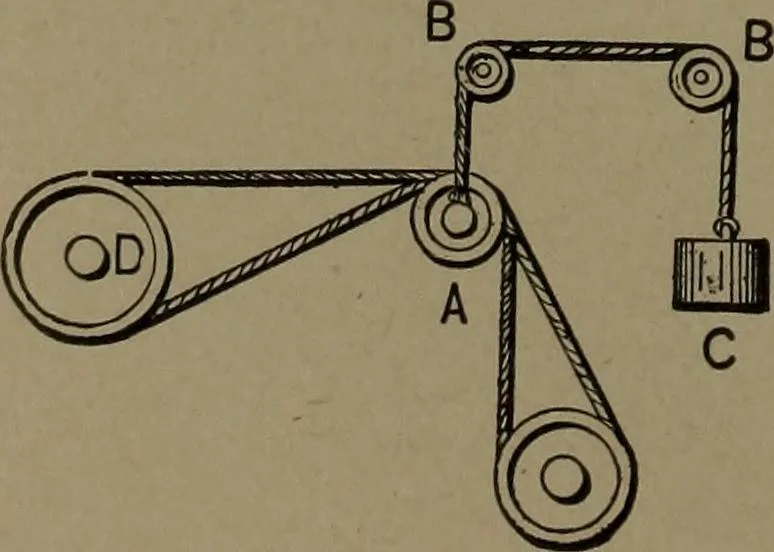

57. ROPE TRANSMISSION, with a tighteningpulley, B. 58. VIBRATORY MOTION to two shafts,transmitted from the rocking of a lever armand sector. … 59. TRANSMISSION BY ROPE to a shaft atright angles to the driving-shaft. The guide sheavesgive direction to the rope over the curve face of thedriven pulley, the rope slipping towards the centreof the driven pulley. 60. TRANSMISSION BY ROPE to a portable drill or swing saw. D, driving sheave. A,…
