Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley Publishing · leaf 266

An illustration from Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries, 1914, leaf 266

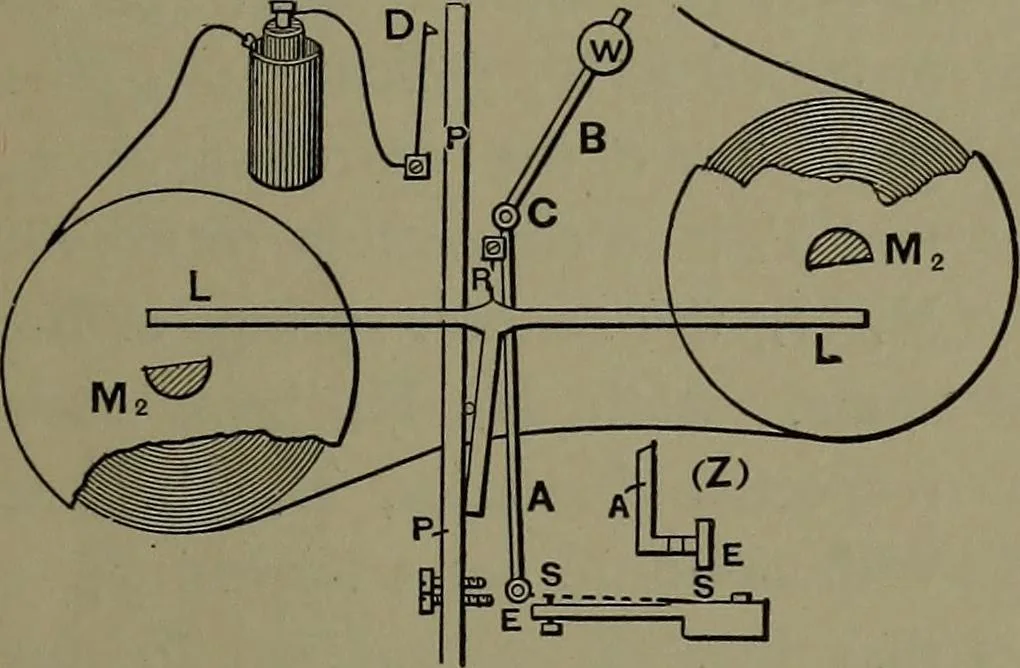

690A. LOST MOTIONCONNECTION. The pin A moves as shown by thearrow, pushing lever B aheadof it. One end of this leveris pivoted to C and theother end rests against thecam D. While B is movingfrom a to b, C stands still.The time thus lost is madeup during the rest of therevolution. Thus C… … 691. ELECTRIC PENDULUM. P P is the pendulum, W a weight,mounted on a lever, W C A. W C A can move about a center, C, and is at present prevented from turn-ing by the catch, S S. When P Pswings to the right, the lowerscrew in P P passes Under E (seeside view Z) and frees W C A.W C A, under the…
