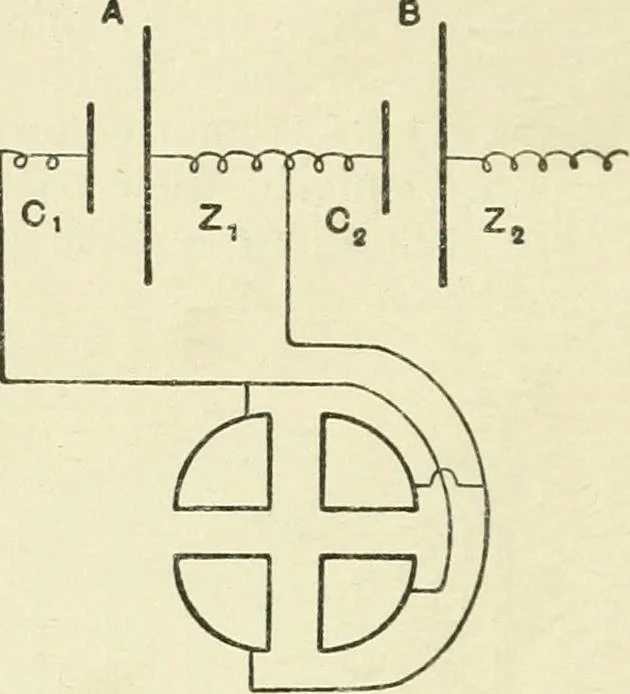

the junction and Z^ to theelectrometer; the potential of the quadrant connected to thejunction will be found to exceed by E^ that of the quadrantconnected to Z^. Thus the potential difference between Cjand Z^ is E^->r E^, and this may be verified by connecting Cjand Z.i to the electrometer. 208… … Fig. 133. arrangement is the sum of the electromotive forces of the twobatteries. In general if a number of batteries are so connectedthe same law holds; if ^i, E^ etc. be the individual electro-motive forces, then E = E^^E^^E^^ 133. Arrangement of Batteries in Multiple Arc or Parallel. Consider…
