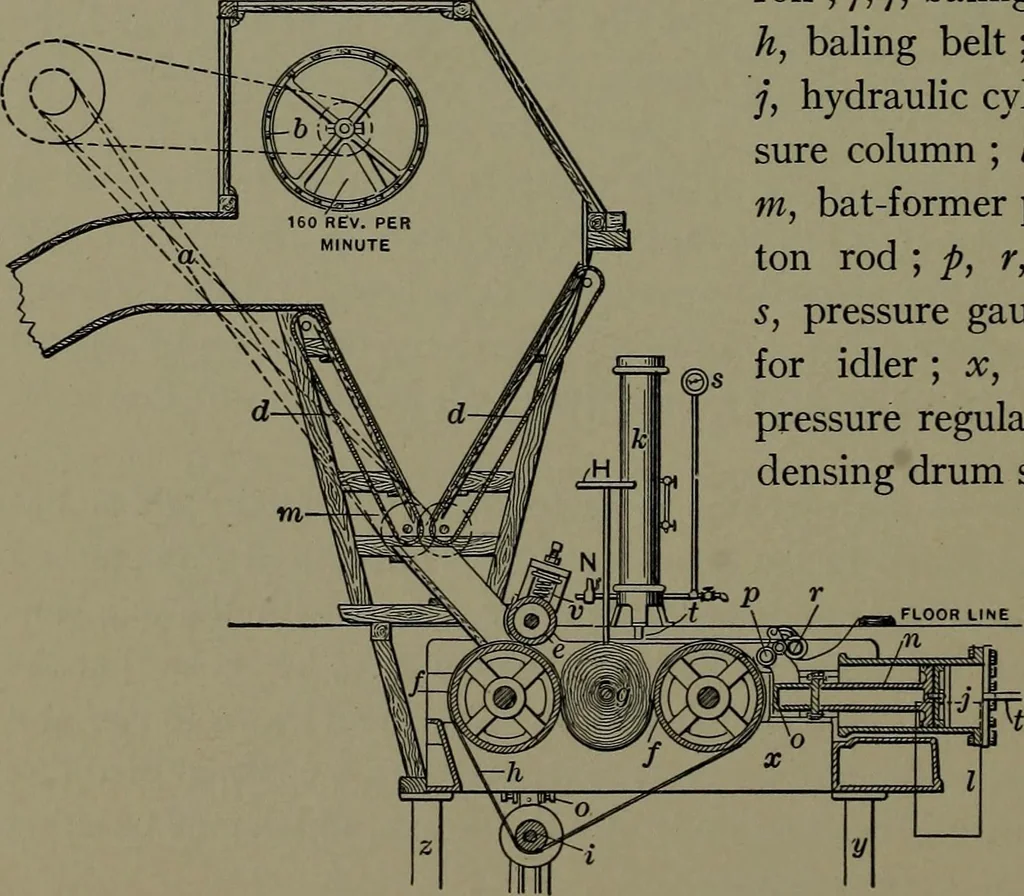

former aprons ; e, compression roll; /, /, baling rolls ; g, core ;h, baling belt; i, belt idler ;j, hydraulic cylinder ; k, pres-sure column ; /, press pulley ;m, bat-former pulley ; n, pis-ton rod ; p, r, tension rolls ;s, pressure gauge ; w, guidesfor idler ; x, bed plate ; N,pressure regulator.… … TEXTILE AND MANUFACTURING DEVICES, ETC. 313
