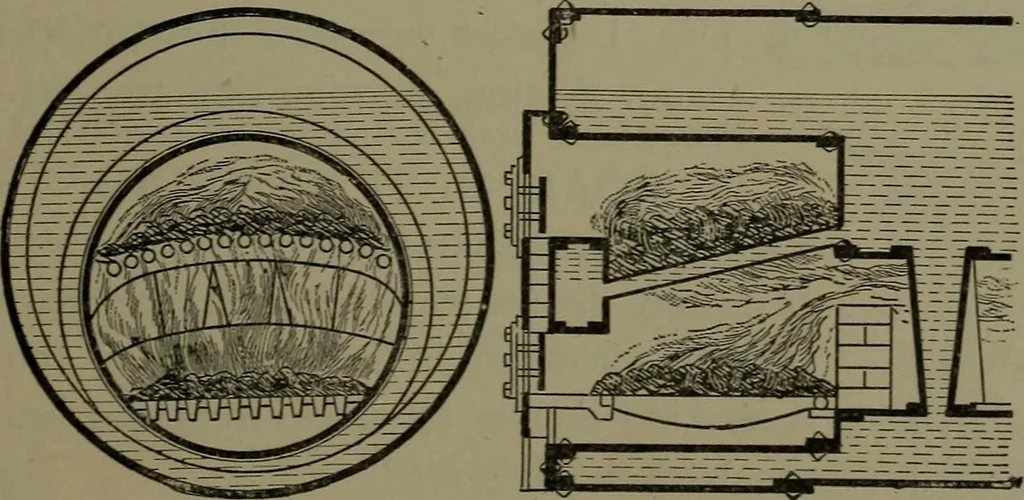

ahopper and coked under thefore arch of the furnace. Mo-tion of grate and amount of coalregulated by speed of gear andopening of the hopper, slidingdoor, and grate guard. 93. UNDER FEEDFURNACE. A circulargrate with a central recess towhich the coal is lifted fromthe magazine by a spiral car-rier.… … A water tube grate with tubes between the furnace head and a cross-head between the doors of the upper and lower furnace for obtaining aperfect circulation in the grate. 95. Longitudinal section of furnace. 6o GENERATION OF POWER, STEAM. 96. ANNULAR STEAM BLOW-ER. For boiler and other furnaces.…
