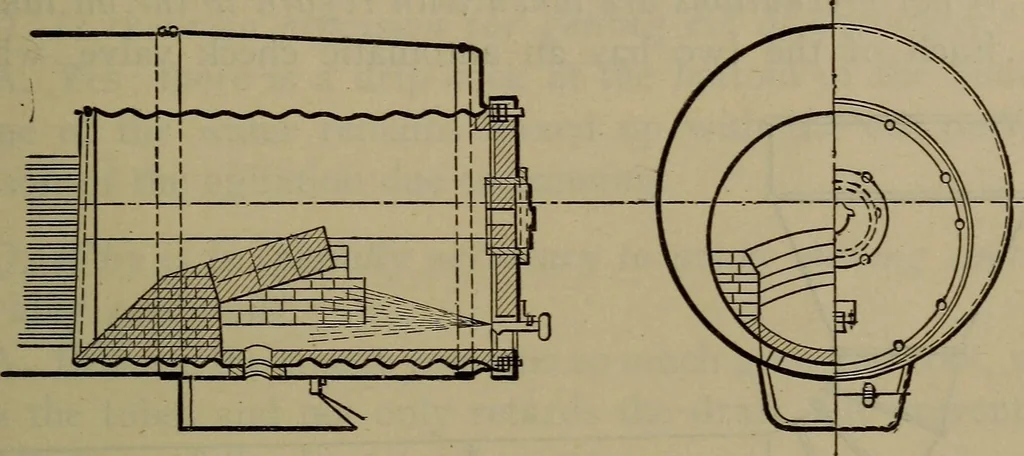

FIRING WITH OIL. 773 peep hole. If there is a door it should be protected by fire-brick or ganister. Q. Describe the Baldwin oil-burning firebox for the Vander-bilt boiler? A. Referring to Fig. 425 : The burner is introduced throughthe lined casing which forms the back boiler head; it is slightly … Fig. 425. Baldwin Oil Burner for Vanderbilt Boiler. above the bottom of the box, and the corrugated wall of thefirebox is protected at bottom and part way up by a fire-bricklining. The front wall and arch are far enough back to forma sort of combustion chamber for the gases before they reachthe…
