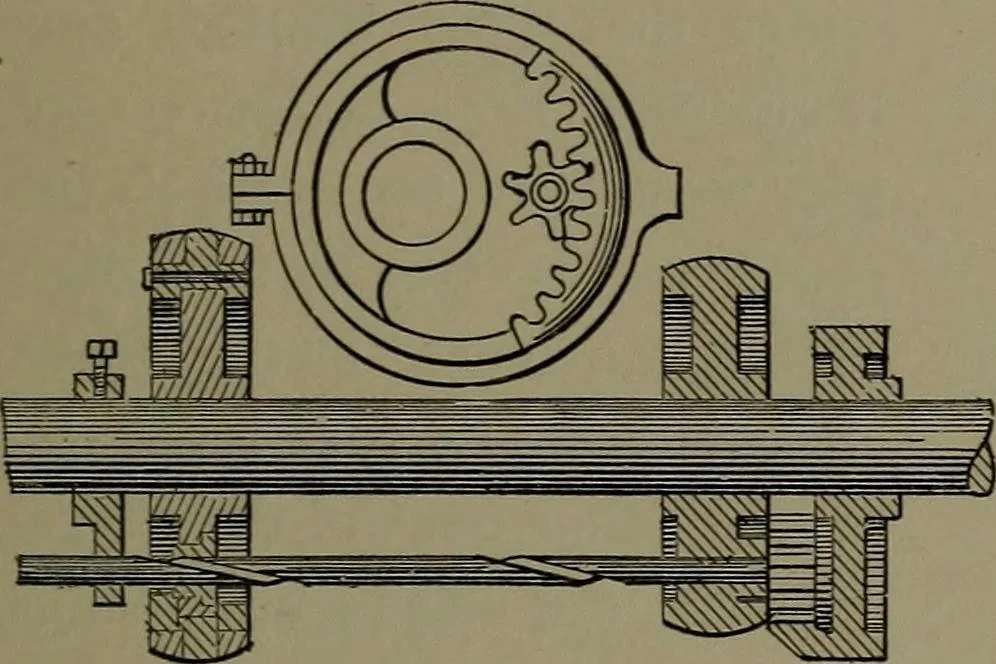

he engineshaft. A third collar slidablymounted on the engine shaft isprevented from turning by asuitable key, this collar carrying the strap to which the reversing leveris connected. A pin in the latter collar engages the groove in thesmaller shaft and when this collar is shifted sidewise the pin… … 211. ENGINE STOPPING MECHANISM. If the governorbelt breaks, the weight N will drop, and through the system of levers and links throw the beli--^ crank lever B so as to shift the safety blocks on theknock-off cams of the valvegear and prevent the valvesfrom being opened by thegrab hooks. An…
