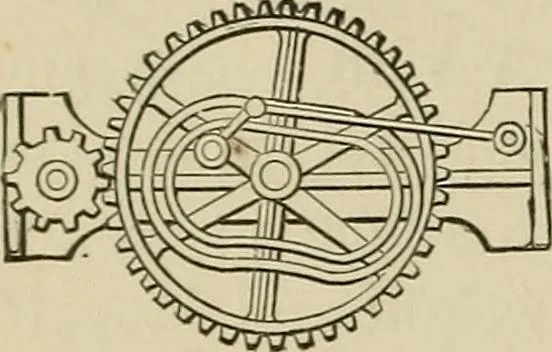

^ pinion.The rack and slot frame are jointed to the manglebox, riding in mesh with the pinion by the slotguide, leaving the mangle box free to ride and tip on the rollers. … 901. ALTERNATE CIRCULAR MOTION from continuous motion of geared wheels. Agrooved cam revolving with a geared wheel pro-duces a variable or alternate motion to a crank,through a pin in the groove connected to the crank and to a fixed point by a connecting rod.
