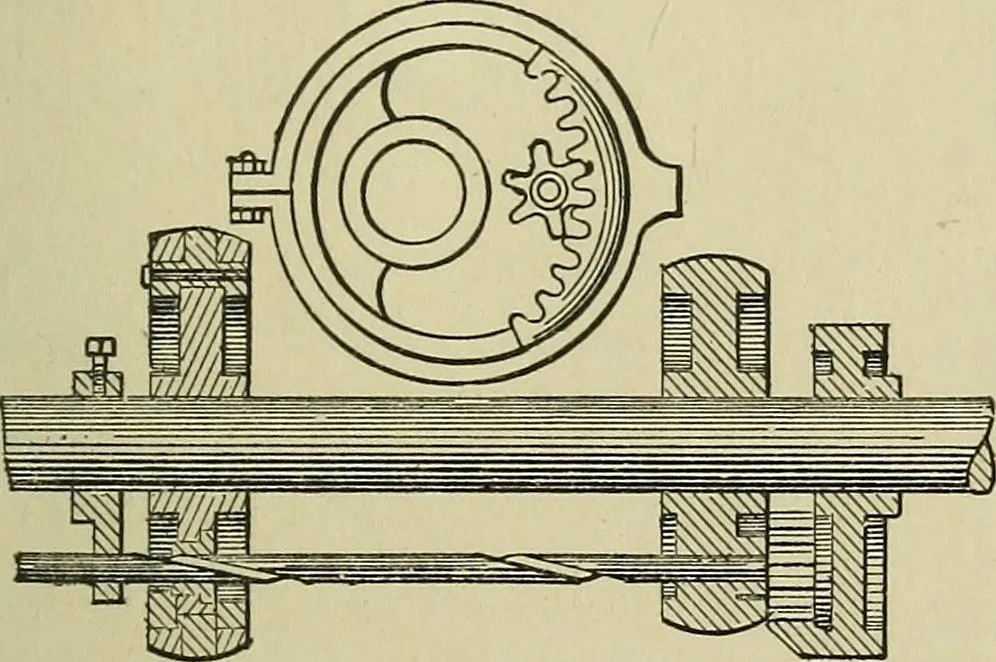

slotted link. The valve-rod block and rod is balanced by a weight onthe rock-shaft arm, and operated by a lever connected to the thirdarm. Valve lead is made by the crosshead arm link and lever con-nected to the valve rod and link-block rod. Italian railway. STEAM POWER APPLIANCES. 95 … 209. REVERSING GEAR. The eccentric is provided with acurved rack near its periphery which meshes with a small pinion. The pinion is secured to the end of ashaft provided with a groove dis-posed spirally for a portion of itslength. The shaft is journaled intwo collars or flanges keyed tothe main…
