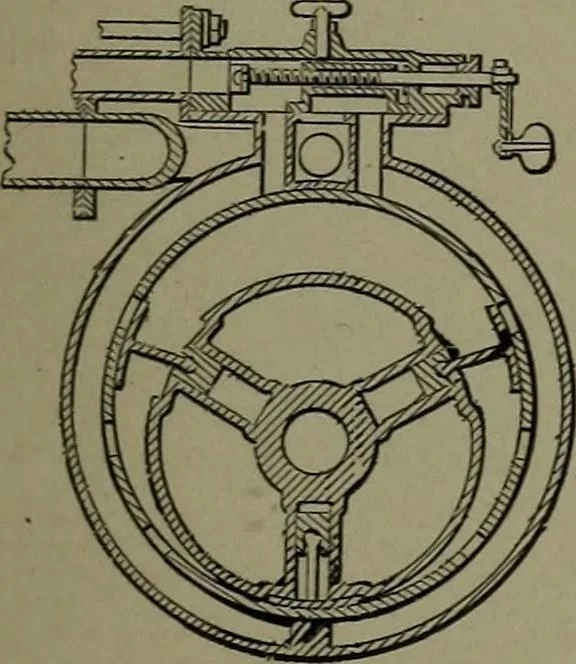

337. BERRENBERG ROTARYENGINE.—Two intersecting cylindricalshells. The steam cylinder D has twocylindrical pistons, D, D, on oppositesides, that mesh in corresponding cavi-^^§= ties in the cylindrical steam valve, bothrotating in unison by equal external gearing. The steam port passesthrough the… … 2:^8. FLETCHERS ROTARY CON-DENSING ENGINE.—A hollow drum on ashaft eccentric to a double shell. Three slotscarry slides and socketed arms as abutmentwings, which are kept in contact with the cylin-drical shell by a ring not shown. Steam portson inner shell at the left side. Exhaust portson the…
