Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 131

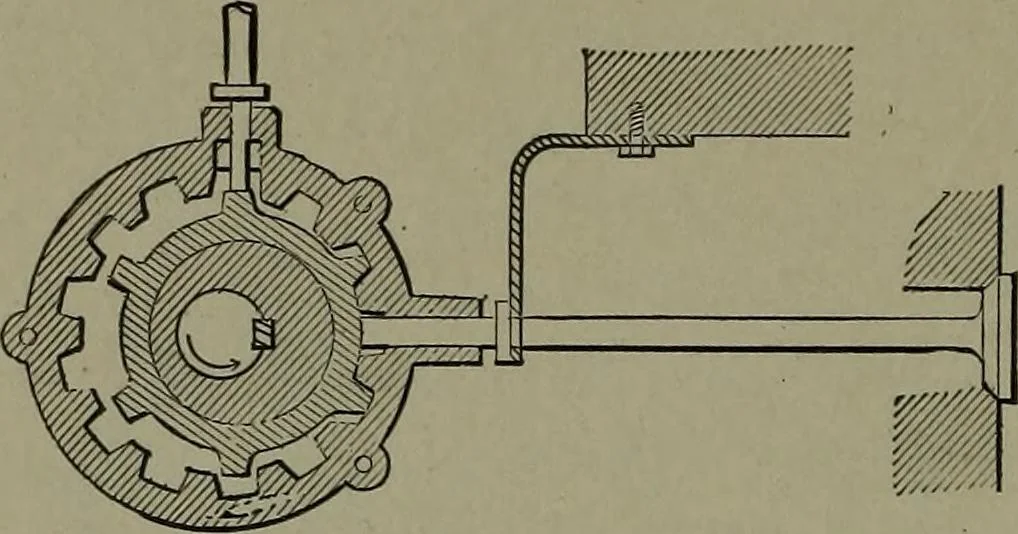

122 MOTIVE POWER. 436. VALVE GEAR, for afour-cycle gas engine. The camis fixed to the engine shaft. Theinner ring gear is swept aroundwithin the outer fixed gear^skipping by one tooth at eachrevolution of the engine shaft.This makes a contact of a ring-gear tooth with the exhaust-valve rodat every…
Mechanical movements
