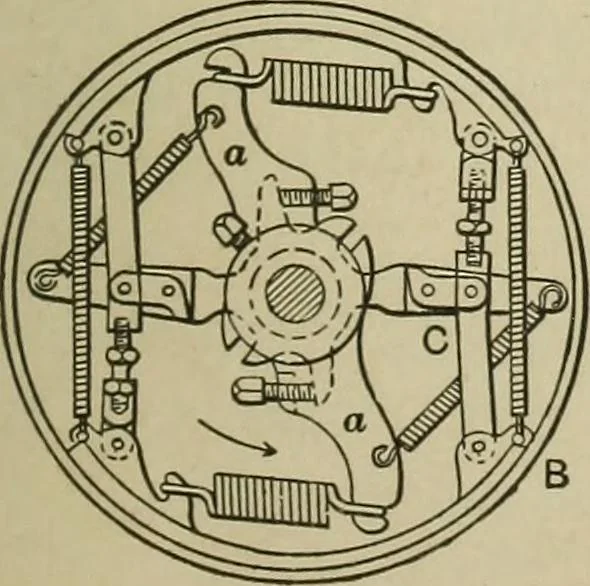

216. CENTRIF-UGAL GOVERNORS. There are patents for sev-eral hundred of this typeof governors, of whichthis and the precedingvolume of mechanicalmovements represent theleading models, most ofwhich are practicallyobsolete. 217. ) Slot cam joint 218. j governor. 219. ) Crank-pin gov- 220. ) em or.… … 224. FRICTION POWER CON-TROLLER. Wicks patent. Transmits onlythe amount of horse-power it is set for. Thepower is given to the pulley, B, by the arm a,helical springs, and friction sectors. The sec-tors are thrust in contact with the pulley bythe adjustable links C, cams, and thrust bars. 98 STEAM…
