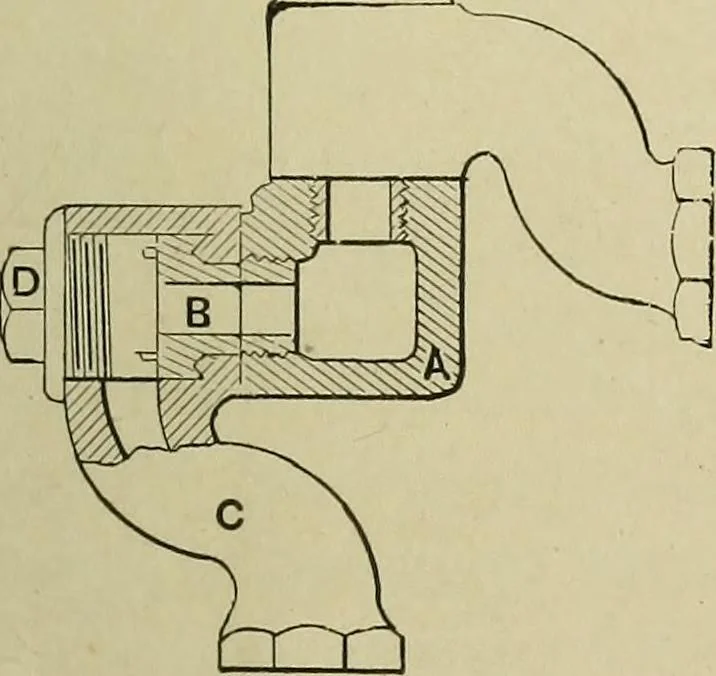

STEAM POWER APPLIANCES. I03 .m … shoulder. As the exposed area of the shoulder or piston is equal tothe area of the steam main, the pressure in the main is equalized. Asthe stuffing box is tied to the other end of the joint by long bolts theentire line of pipe is in a state of equilibrium so far as the end pressureis concerned.…
