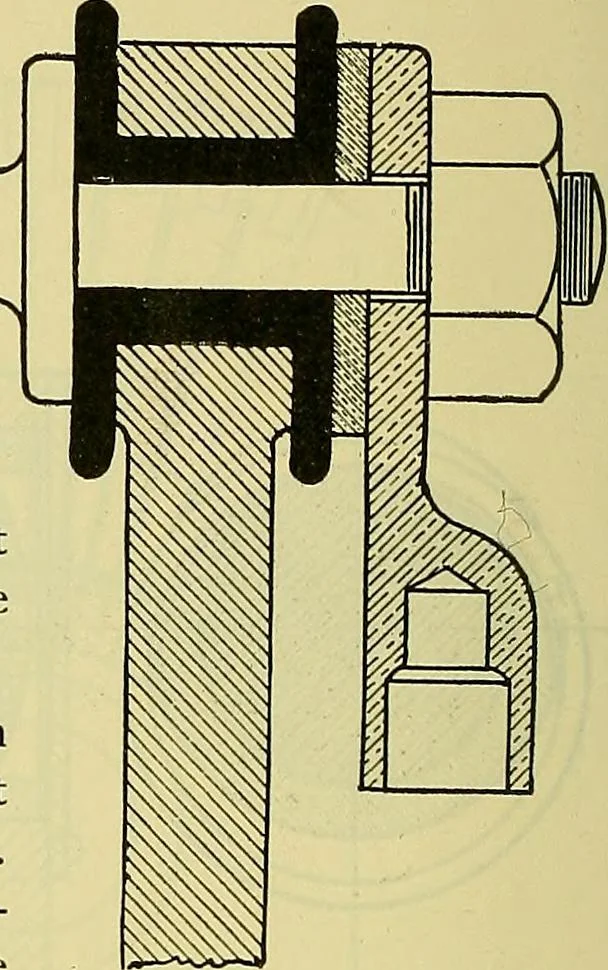

FlQ. 571. Fig. 570. The commutator shell is secured to the shaftby means of a small key not shown in theillustration. In Figs. 567 and 568 is illustrated a sectionof a simple self-oiling bearing for the supportof the shaft of the dynamo, illustrated in Figs.559 and 560. Within the bearing box is…
