Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices"; (1917)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing company · leaf 113

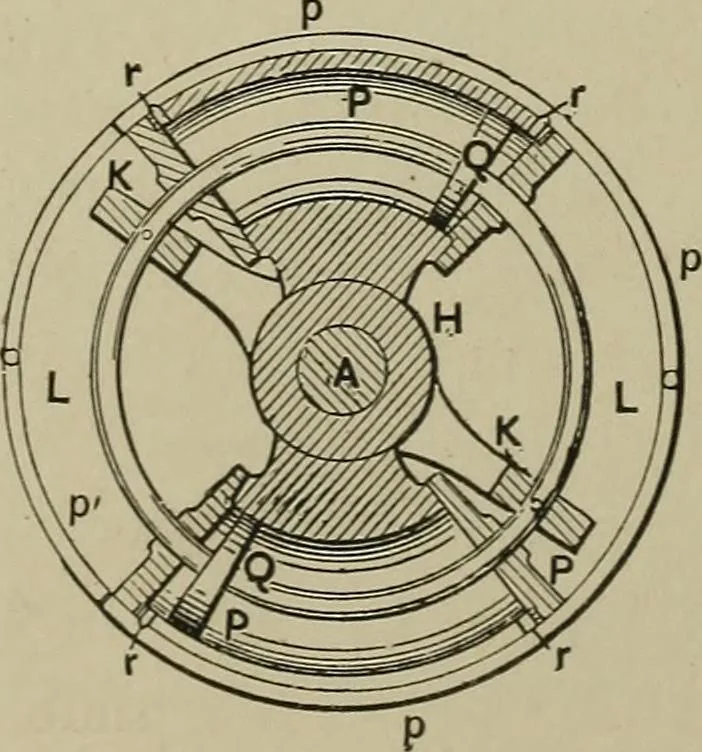

s the motion of the piston rod toelliptical gears (not shown in the engraving),which controls the motion and transmitsthe power of the engine. The cylinders with the steam pipe, /, arecarried by a bracket, H, which is keyedfirmly to the main shaft, A, and rotates with it. The radial arms,.K K,to… … STEAM POWER APPLIANCES. IO9 through the ports, r, at either end of the cylinders, the difference inthe diameters of the elliptical gears at the point of contact causes themain shaft elliptical gear, with the attached parts, to rotate.
Mechanical movements
