Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries (1910)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The N. W. Henley publishing company · leaf 110

An illustration from Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries, 1910, leaf 110

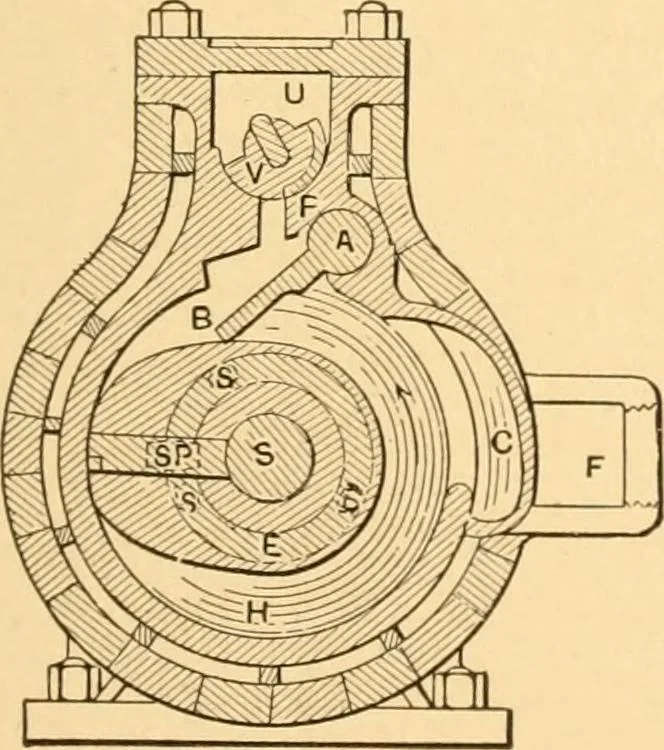

262. REVERSIBLE ROTARY EN-GINE. The piston when revolving in thedirection of the arrow takes steam by thethrow of a two-way cock; steam enteringthrough the diagonal slots in the abutmentpieces at /, /, and exhausting through theports <f, c. Reversed by throwing over thesteam-cock opening to the… … 263. ROTARY ENGINE. Hodson type. The valve U is operated by a camon the shaft S, to cut off for expansion.A, B, is a riding valve in contact with theelhptic cylinder, which has a packing slide,S, P, concentric with the axis and followingthe wall of the shell as a packing. Steam follows at half- or…

Mechanical movements

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
