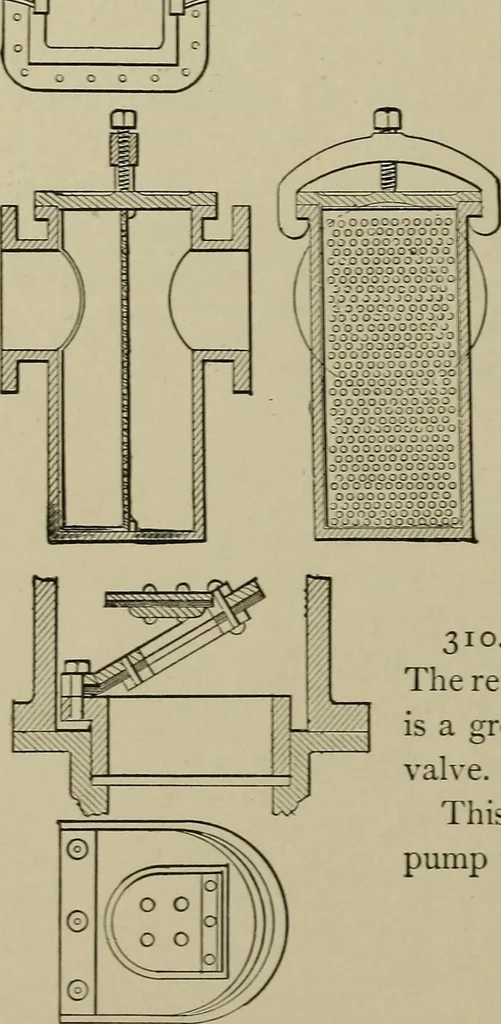

307. IRON SLUICE GATE. Type of designsused for water works, power plants, and irrigation sys-tems. Easily bolted to a wooden flume or anchoredto masonry. A water works type for the largest gates. n □en … 308. BASKET STRAINER.A perforated plate slid into a cylin-drical chamber with cover and yokein a line of suction pipe. Easilyremoved for cleaning. 309. Section showing perfora-tions in the strainer plate. 310. DOUBLE-BEAT FLAP VALVE. The reversed flap on the back of the main flapis a great relief…
