An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox, 1914, leaf 152

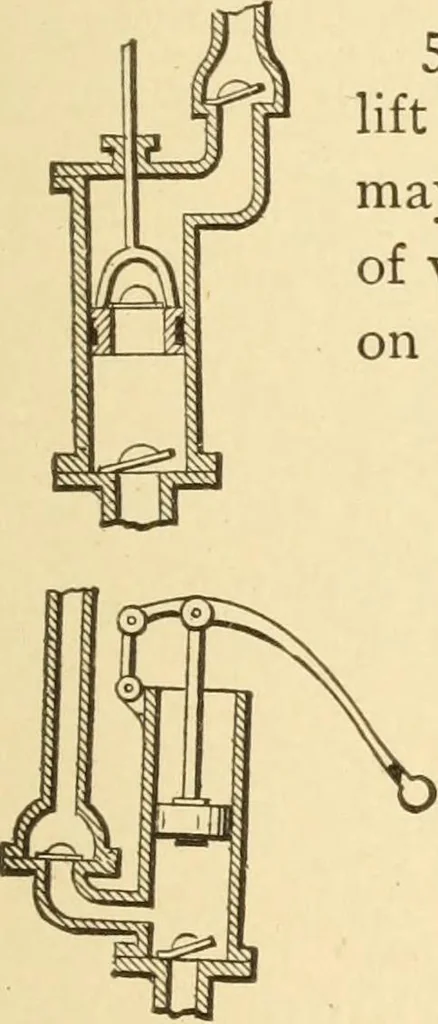

DOUBLE-ACTING DIFFERENTIAL PUMP. —The lower section is of the same constructionas the ordinary lifting pump. The uppersection has a solid piston connected by rod tothe lower bucket piston, and moving in anopen cylinder projecting down from the cover,thus making the upper part of the pump an…
