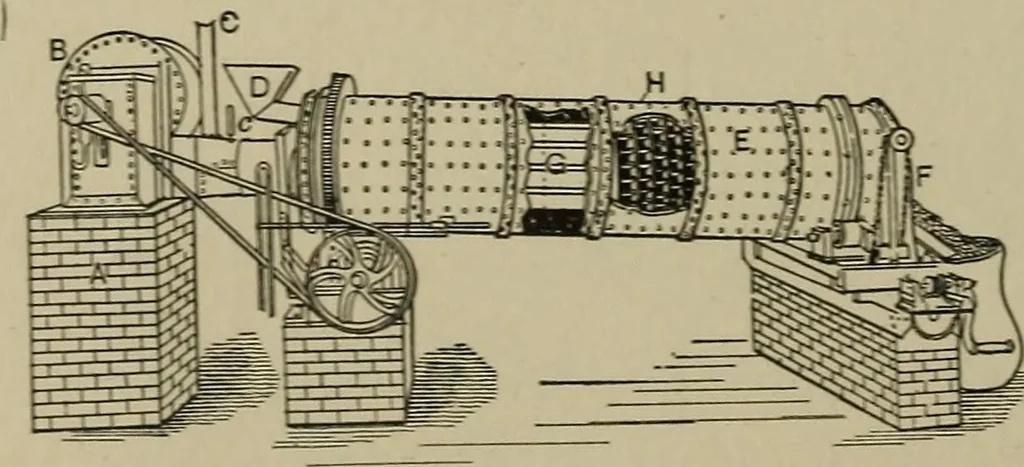

of warm air. A, a brick box in which coke isburned, or a flue to conveywaste heat from any fur-nace. B, compoundwrought-iron fan, whichwill draw waste heat fromi^fer a distance of 50-100 feet.C, chimney and valve, tocarry off smoke when fire is first lighted, c, thermometer or pyrometer.D, feed… … AIR-POWER MOTORS AND APPLIANCES. 151 tions to suit different products. H, part of the outer shell removed toshow the cells in which the grain is carried up and poured out in a con-tinual stream; the number and pitch of these cells is also varied forvarious products. RESERVOIR
