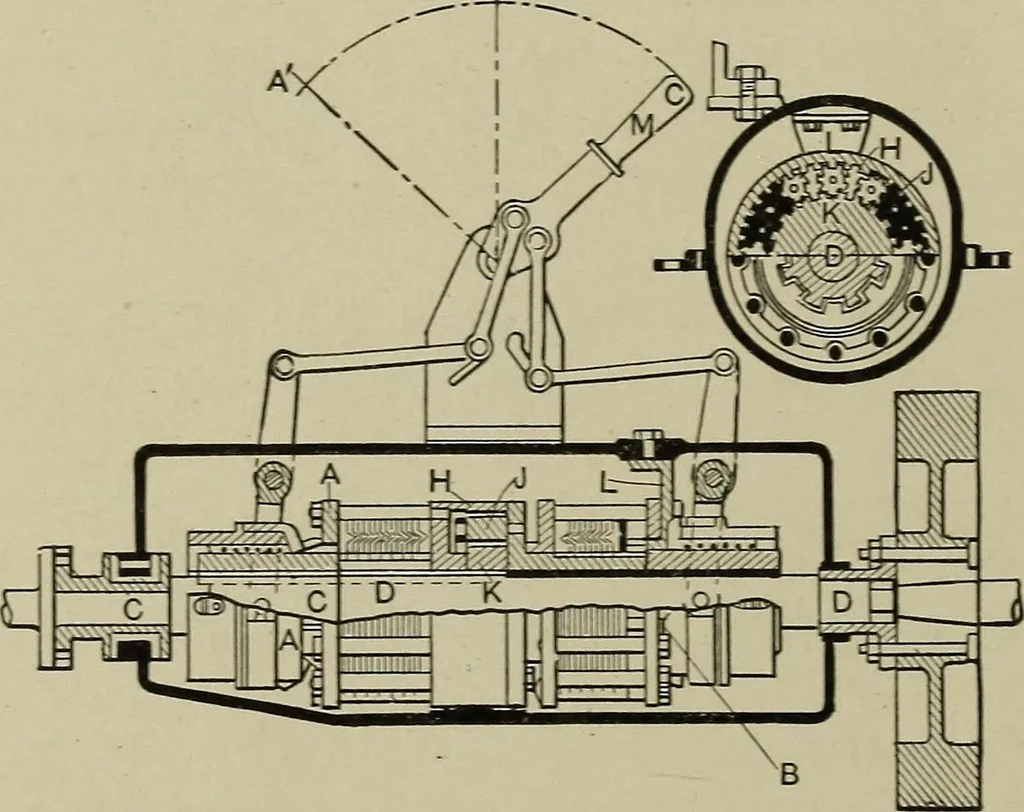

TCH for a launch. C is the propellershaft ; D, the engine shaft ; A, H, shell keyed to the propeller shaft, with an inside spurto match theof pinions J ;L, anchor knee tohold the reverse mo-tion shell B ; K, theinner gear whichdrives the back mo-tion when the pinionring is held fast by…
