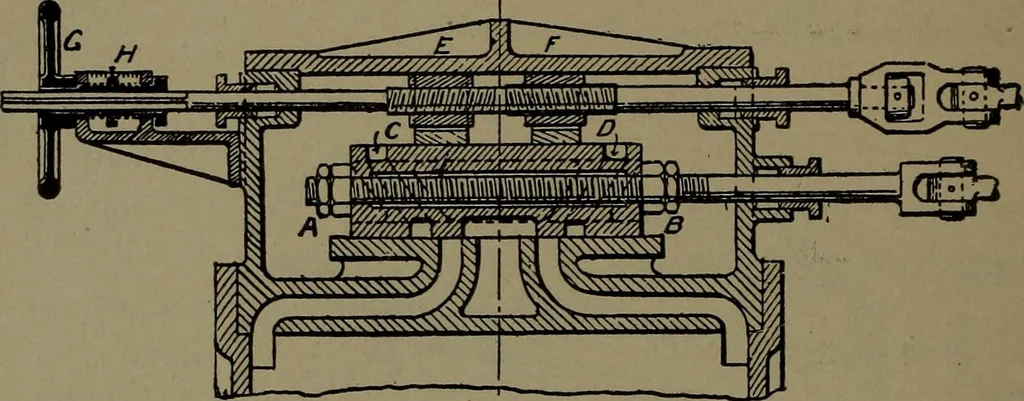

240. DOUBLE-PORTED SLIDEVALVE and adjustment by doublenuts in the back of the valve. … 241. *MEYER CUT-OFF VALVE—C, D, Slide valve withperforated ports. The supplementary or cut-off valves are adjustedto the required distances, to meet the required cut-off, by a right andleft screw, which has an index H, and wheel G, for turning the screwfor cut-off adjustment on the outside of the…
