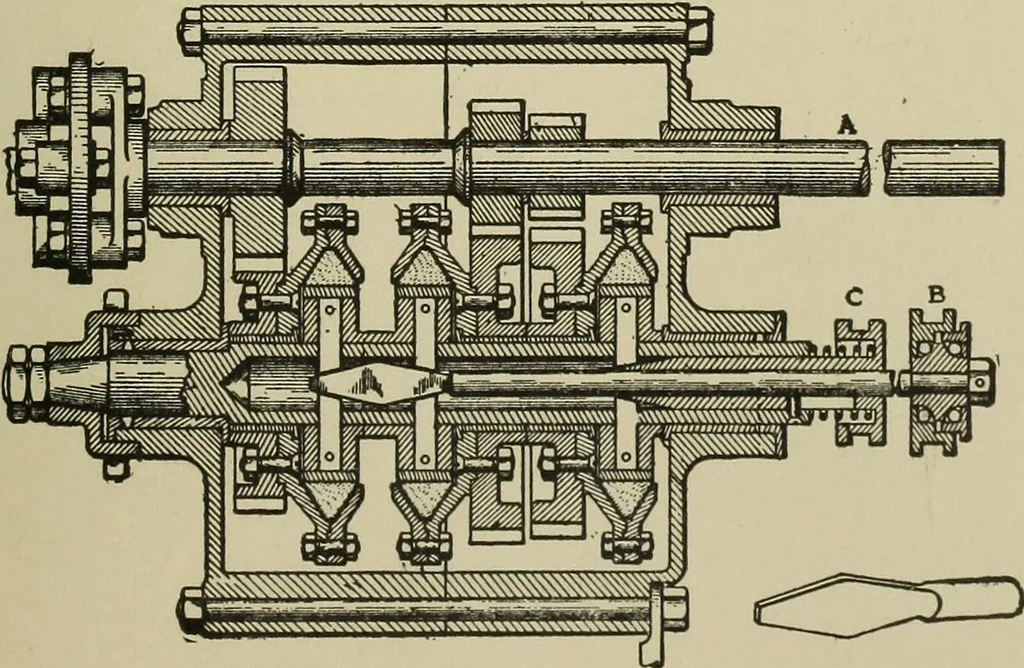

iller type. By a simple motion ofthe foot the pawl locks or unlocks the brakelever, so that the brake is on and locked whenleaving the automobile alone. Saves muchtrouble in tying up horseless vehicles. 545. AUTOMOBILE CHANGE SPEED GEAR. Petteler type. A, the driving shaft with fixed gears; B,… … 214 ROAD AND VEHICLE DEVICES, ETC. 546. AUTOMOBILE CHANGE SPEED GEAR. Dorris type.To the upper shaft are fastened three gears corresponding to the three pinions, and in addi-tion an internal gearoutside the casing andof comparatively largediameter. A pinion ismounted upon thelower shaft, at the…
