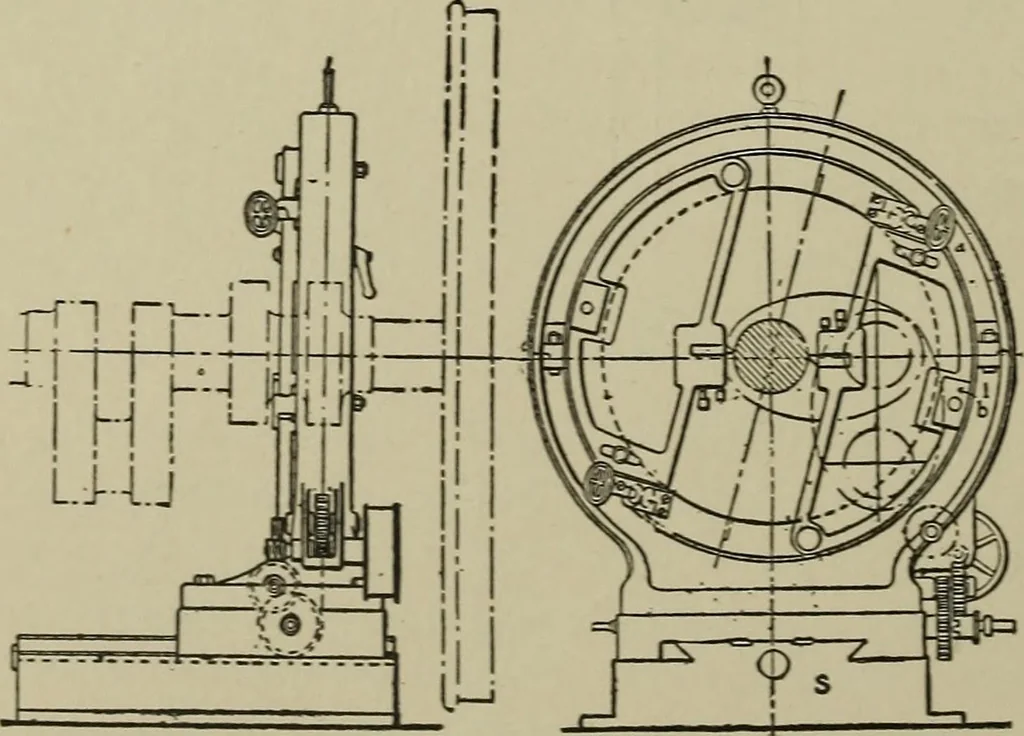

tially two tool carriages turning around the crank shaft, which is fixed, and it is in-dependent of anyspecial device thatmay be used forcentering the shaft.The two tool car-riages are shapedas circular seg-ments and are dia-metrically oppositeeach other, pivotedat one end on atoothed crownwhich is… … RAILWAY DEVICES AND APPLIANCES, ETC. 229 sliding carriage which may be moved with a screw, automatically or byhand, on the saddle S, adapted in size and shape to the lathe bed. The position of each of the tool carriages may be regulated by turningthem on their pivots, bringing them nearer or…
