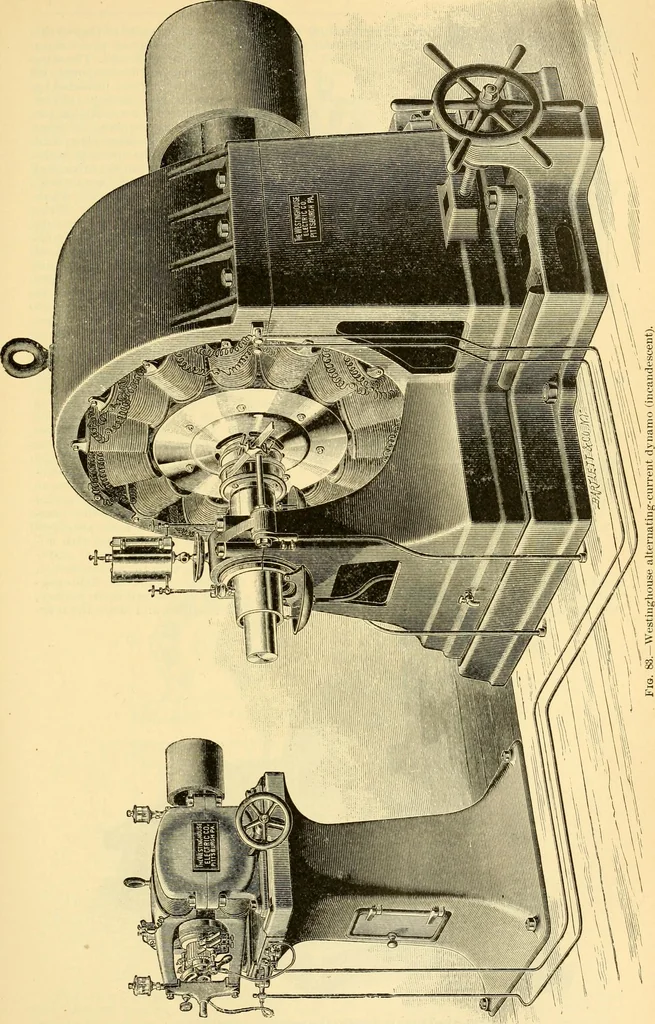

ac or any other material tried. Fig. H4 is a side view and lig. x.) is an end view, from which the construction will beeasily iniderstood. The field-magnit.s bolted to the external frame of the machine, form acircle, radiating inward toward the arnuiture, which is mounted in the center on… … 234 DYNAMO-KLECTRIC MACHINES. cores being shown at //, Fig. 86. The winding of each magnet is opposite to that of theadjacent one, so as to produce north and south polarity. The coils are slipped on the cores after being wound. The arm-ature-core is composed ofsheet-iron disks, insulated bypaper,…
